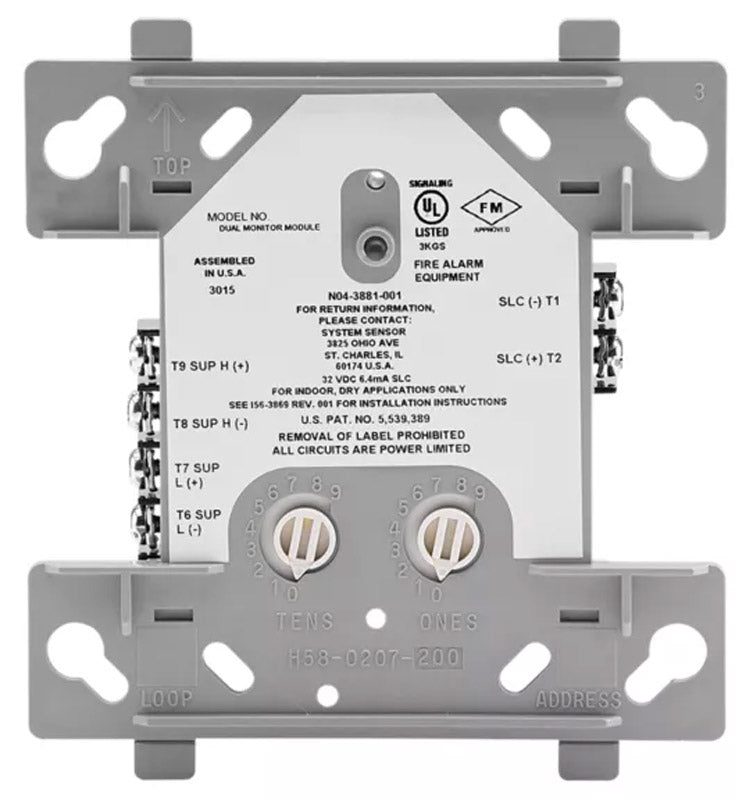

The IDP-MONITOR-2 is an addressable monitor module with two initiating circuits for use with Honeywell Farenhyt Series fire alarm control panels (FACPs). The IDP-MONITOR-2 acts as an interface to contact devices, such as waterflow switches and pull stations.
The IDP-MONITOR-2 supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions.
Because the IDP-MONITOR-2 is capable of monitoring two separate Class B circuits, it is ideal for waterflow tamper switch and flow switch monitoring.
FEATURES
- Monitor two circuits, with unique addresses, simultaneously
- Support for Class B wiring
- Fully supervised
- Panel controlled status LED that flashes green in normal state and is solid red in alarm
- Rotary address switches for fast installation
- SEMS screws for easy wiring
- UL Listed
- CSFM Listed
- MEA Listed 457-99-E Vol. V
