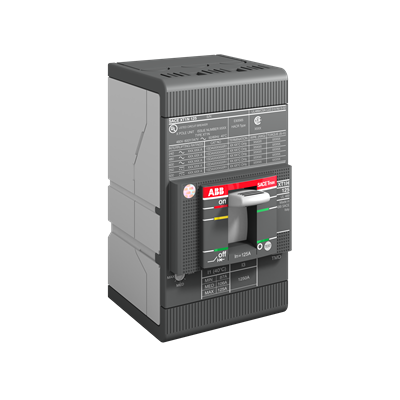

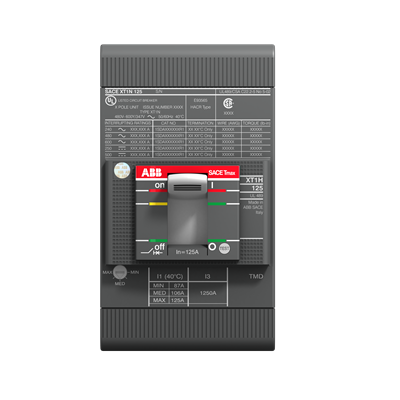

Circuit Breaker: 3-Pole, 125A

Circuit Breaker: 3-Pole, 125A

by ABB

SKU:1SDA074678R1

Molded case circuit breaker used for power distribution protection in commercial panels, switchboards, and OEM equipment. It is a fixed, 3-pole breaker with a 125A thermal-magnetic fixed trip unit and front terminals, suited for hospitality and other commercial electrical systems requiring UL 489 branch or feeder protection.

Features

  • 125A rated current with TMF thermal-magnetic fixed trip unit
  • 3-pole fixed breaker with front bolt terminals
  • Rated 600Y/347V AC and 500V DC
  • UL 489 interrupting ratings: 65 kA at 240V AC, 35 kA at 480V AC, 22 kA at 600Y/347V AC
Typically ships in 1-3 business days based on stock levels Quick Ship

Low stock: 1 left

  • Resources
Mfr Spec Sheet
Warranty Information
View full details
  • Specifications
Mounting
Fixed
Size
  • 5.12" (L) x 3.00" (W) x 2.76" (D)
Weight
2.43 LBS
Voltage
600Y/347V AC, 500V DC
Listing
UL Listed
Warranty
1-Year Limited Warranty
Location Rating
Dry Location suitable for Indoor Use Only
Data Sheet
Manufacturer Data Sheet
