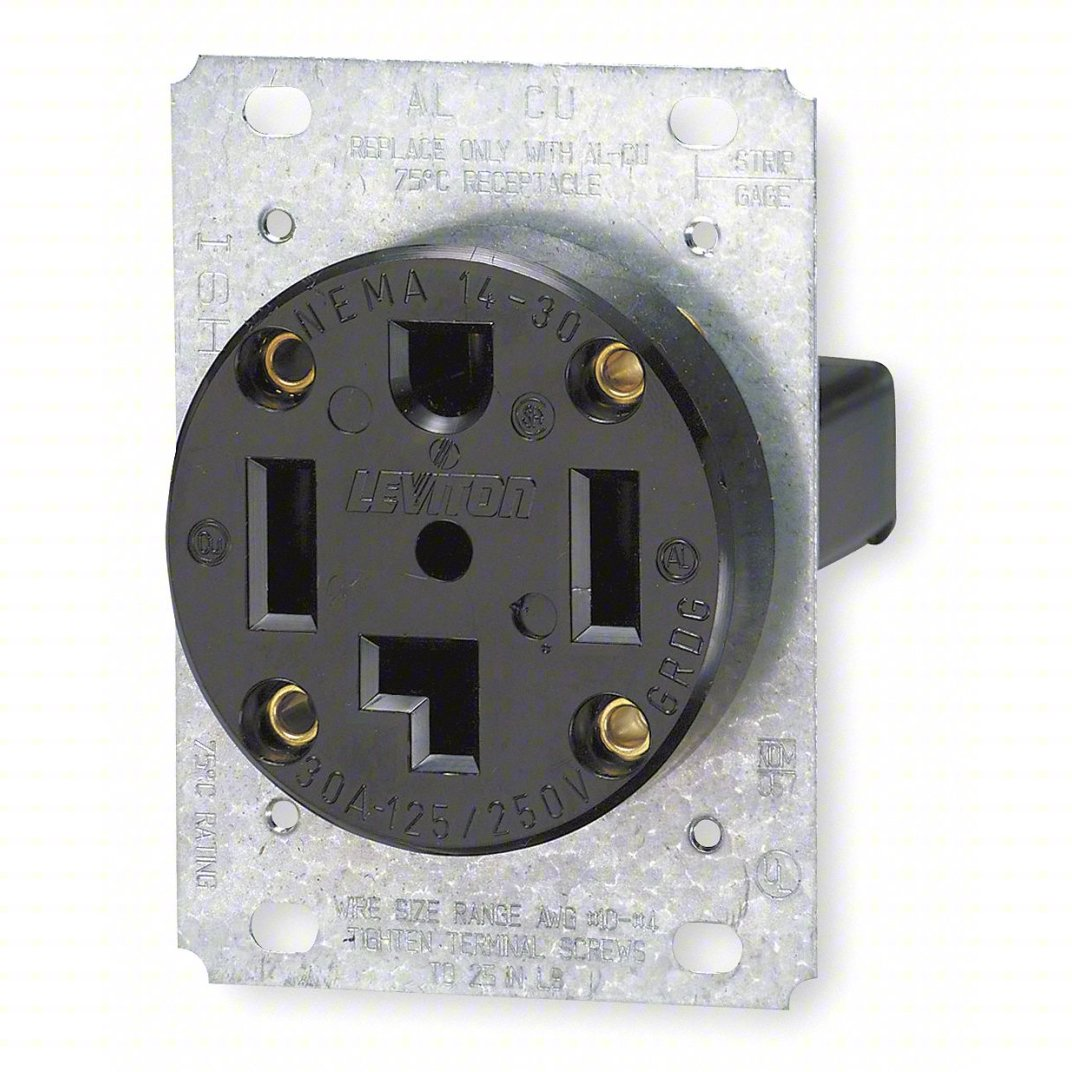

Receptacle: 30A, NEMA 14-30R

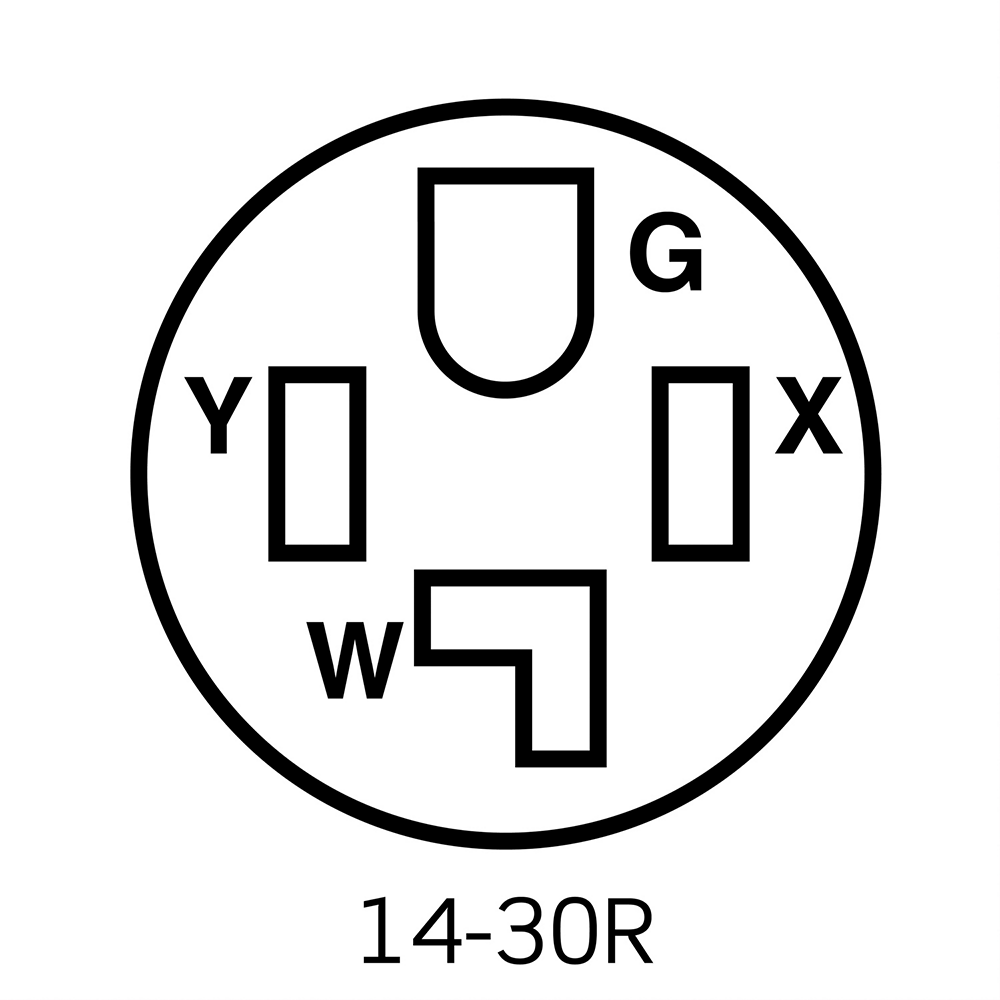

Flush-mount single receptacle is a 30A, 125/250V AC NEMA 14-30R device for dedicated equipment and appliance power connections in commercial and hospitality settings. It uses a 3-pole, 4-wire straight-blade grounding configuration with side wiring, heavy-gauge copper contacts, and a steel strap for durable installation.\

Features

• Accepts up to #4 AWG conductors; installation sheet also lists use with #6-#10 AWG copper or #6-#8 AWG aluminum/copper-clad conductors.
• Fits wallplates with a 2.15" center hole; do not use with single-gang wallboxes, single-gang mud rings, or single-gang box extenders.
