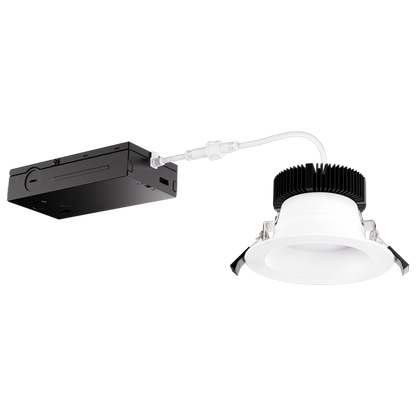

4" 0-10V LED High Lumen Trim w/ CCT & Lumen Select
4" 0-10V LED High Lumen Trim w/ CCT & Lumen Select
SKU:ERT475CT5DW

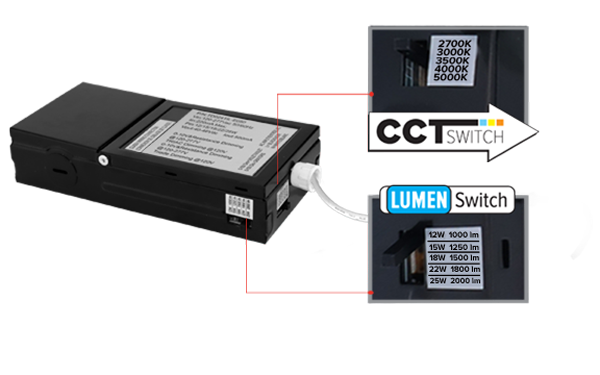

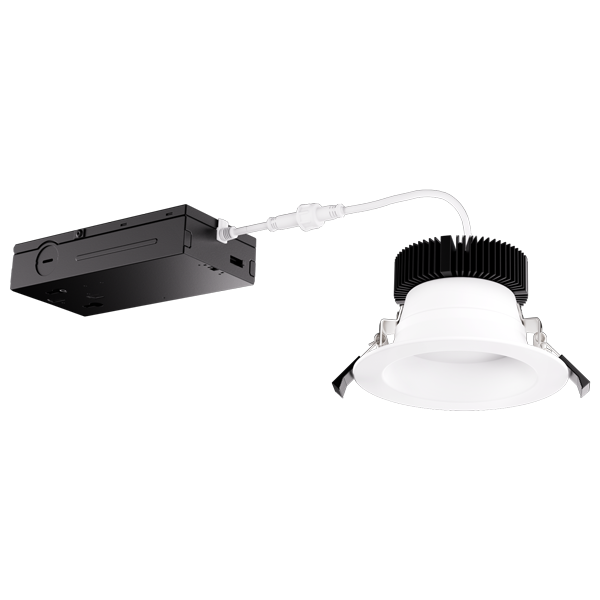

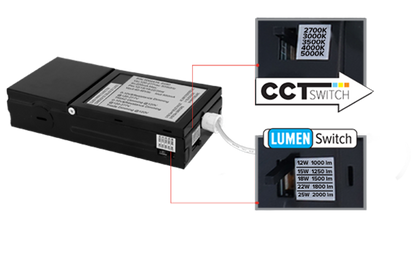

This 4" LED Recessed Downlights is designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The CCT manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. The Lumen Switch allows you to choose between 1000 (12W), 1250 (15W), 1500 (18W), 1800 (22W) or 2000 (25W) lm. IC-Rated for use with direct contact with insulation.
- IC Airtight for use with direct contact to insulation.
- Designed to fit in plenums as shallow as 3".
- 80° Standard beam angle.
- New Construction application requires mounting plate
or frame. - Remodel applications require no additional accessories.
In stock: 0
Send a copy to email:
By entering your email, you agree that it will be seen by the store owner and may contact you.
Open here
- Description
- Specifications
- Resources
This 4" LED Recessed Downlights is designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The CCT manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. The Lumen Switch allows you to choose between 1000 (12W), 1250 (15W), 1500 (18W), 1800 (22W) or 2000 (25W) lm. IC-Rated for use with direct contact with insulation.
- IC Airtight for use with direct contact to insulation.
- Designed to fit in plenums as shallow as 3".
- 80° Standard beam angle.
- New Construction application requires mounting plate
or frame. - Remodel applications require no additional accessories.
| Size |
|
| Weight |
1.5 LBS
|
| Finish |
White/Black
|
| Wattage |
12W/15W/18W/22W/25W
|
| Lumens |
1000L/1250L/1500L/1800L/2000L
|
| Voltage |
120/277V
|
| Color Temp |
27K/30K/35K/40K/50K
|
| Dimmable |
0-10V
|
| CRI |
90+
|
| Listing |
Energy Star Certified, Title 24 JA8-2019 Compliant
|
| Warranty |
5-Year Limited Warranty
|
| Location Rating |
Wet Location Suitable For Indoor/Outdoor Use
|
