4" 0-10V New Construction Dedicated LED Housing
4" 0-10V New Construction Dedicated LED Housing
by ELCO Lighting
SKU:JR4-ICAT-120-277-010
Regular price
$24.50
Regular price
Sale price
$24.50
Unit price
per
Typically ships in 1-3 business days based on stock levels
Quick Ship
66 in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by the store owner and may contact you.
Open here
- Description
- Specifications
- Resources

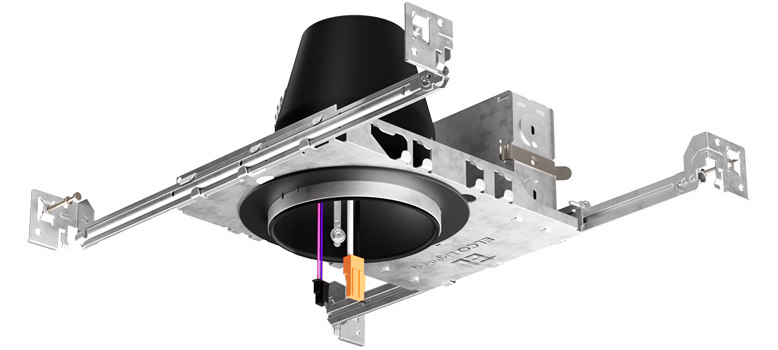

The 4″ 0-10V New Construction Dedicated LED Housing is designed for high-performance dimmable lighting in new construction projects. Engineered for 0-10V dimming compatibility, this housing enables smooth, flicker-free brightness adjustment, making it an ideal choice for commercial, hospitality, retail, and high-end residential applications. Its IC-rated and airtight construction enhances energy efficiency while ensuring safety and reliability.
- Wired for 0-10V Dimming
- Single wall IC Airtight rated for Direct Contact with Insulation
- 120/277V Input
- 14W - 18W
- Meets restricted air flow requirements (per ASTM E-283)
- cUL Listed for direct contact with Insulation
- cUL Listed for Damp Locations
- cUL Listed for Wet Location with Wet Location Rated Inserts
- cUL Listed for Feed Through
- CA Title 24 Compliant
| Size |
|
| Wattage |
14W - 18W
|
| Voltage |
120/277V
|
| Dimmable |
0-10V
|
| Listing |
UL Listed
|
| Warranty |
5-Year Limited Warranty
|
| Location Rating |
Wet Location Suitable For Indoor/Outdoor Use
|
