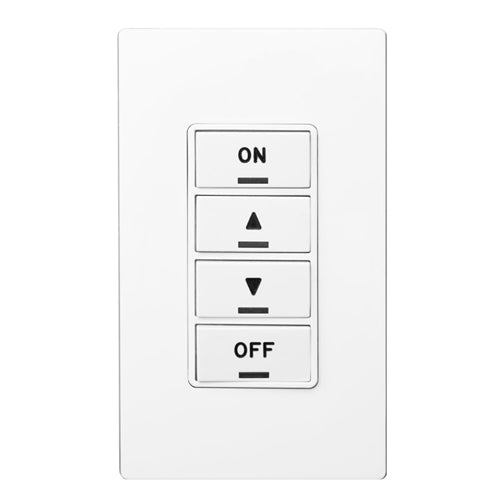

4-button ON/OFF Controller

FEATURES

• Function description: ON—all lights to daylight harvesting level, Bright—raise light levels with press hold or multiple press, temporary override of daylight harvesting level, Dim—lower light levels with press hold or multiple press, temporary override of daylight harvesting level, OFF—turn off lights
• Designer Decora styling complements any interior for sleek aesthetics
• Entry station utilizes industry standard buttons for room lighting control
• Can be used with stand-alone IRC System
• Enables Ladderless Commissioning™ of IRC Systems. Modify the daylight harvesting target level with the 4-button controller

SPECIFICATIONS

• Color: White
• Input Voltage: 24VDC
• Input Current: 24mA
• Operating Temperature Range: 32-104°F (0-40°C)
• Storage Temperature Range: 14-158°F (-10-70°C)
• Relative Humidity: 20-90% non-condensing
