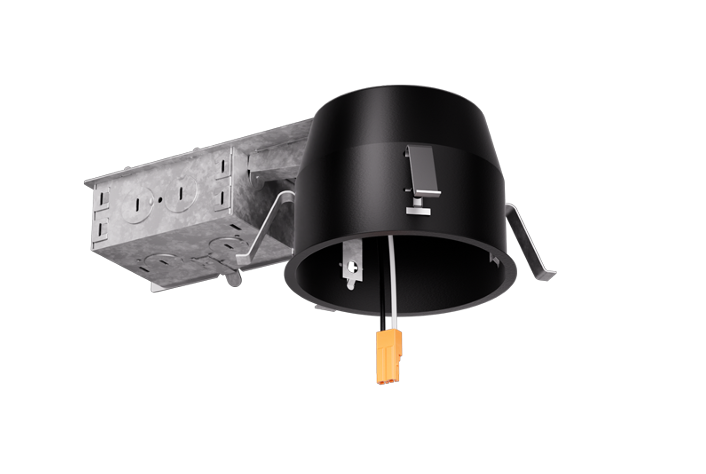

This 4" IC-rated airtight shallow remodel housing is designed for energy-efficient LED applications in insulated ceilings with limited space. Its airtight design helps reduce energy loss, and it's compatible with multiple 4" LED inserts. Ideal for retrofit and remodel projects in both residential and commercial settings.
-
IC-rated for direct contact with insulation
-
Airtight per ASTM E-283
-
Shallow depth for use in 2x6 joist ceilings
-
Adjustable to ceiling thicknesses up to 1.5"
-
Quick Connect for easy LED module installation
-
Works with ELCO 4" inserts and trims
-
UL listed for damp and wet locations (with compatible trims)
-
Energy Star and Title 24 JA8 compliant
A practical solution for meeting modern energy codes while maintaining design flexibility in tight plenum spaces.
| Mounting |
Remodel installation, no new construction frame required
|

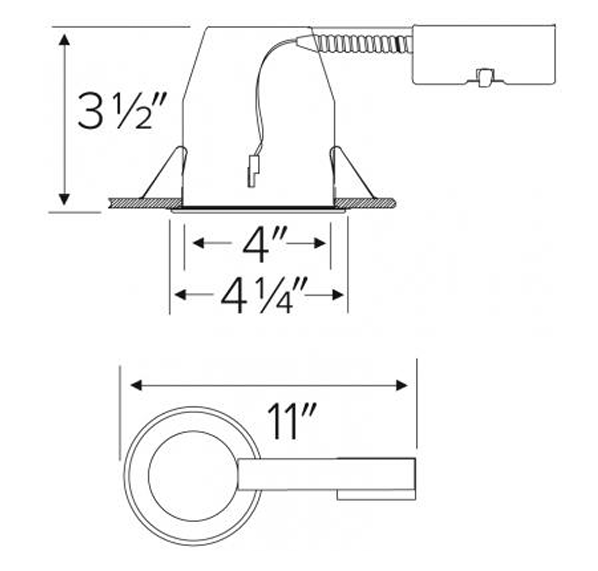

| Size |
|
| Weight |
1.5LBS
|
| Wattage |
14W max
|
| Voltage |
120V/277V
|
| Listing |
UL Listed, Energy Star, Title 24 JA8 Compliant
|
| Warranty |
3-Year Limited Warrany
|
| Location Rating |
Damp Location suitable For Indoor/Outdoor Use
|
