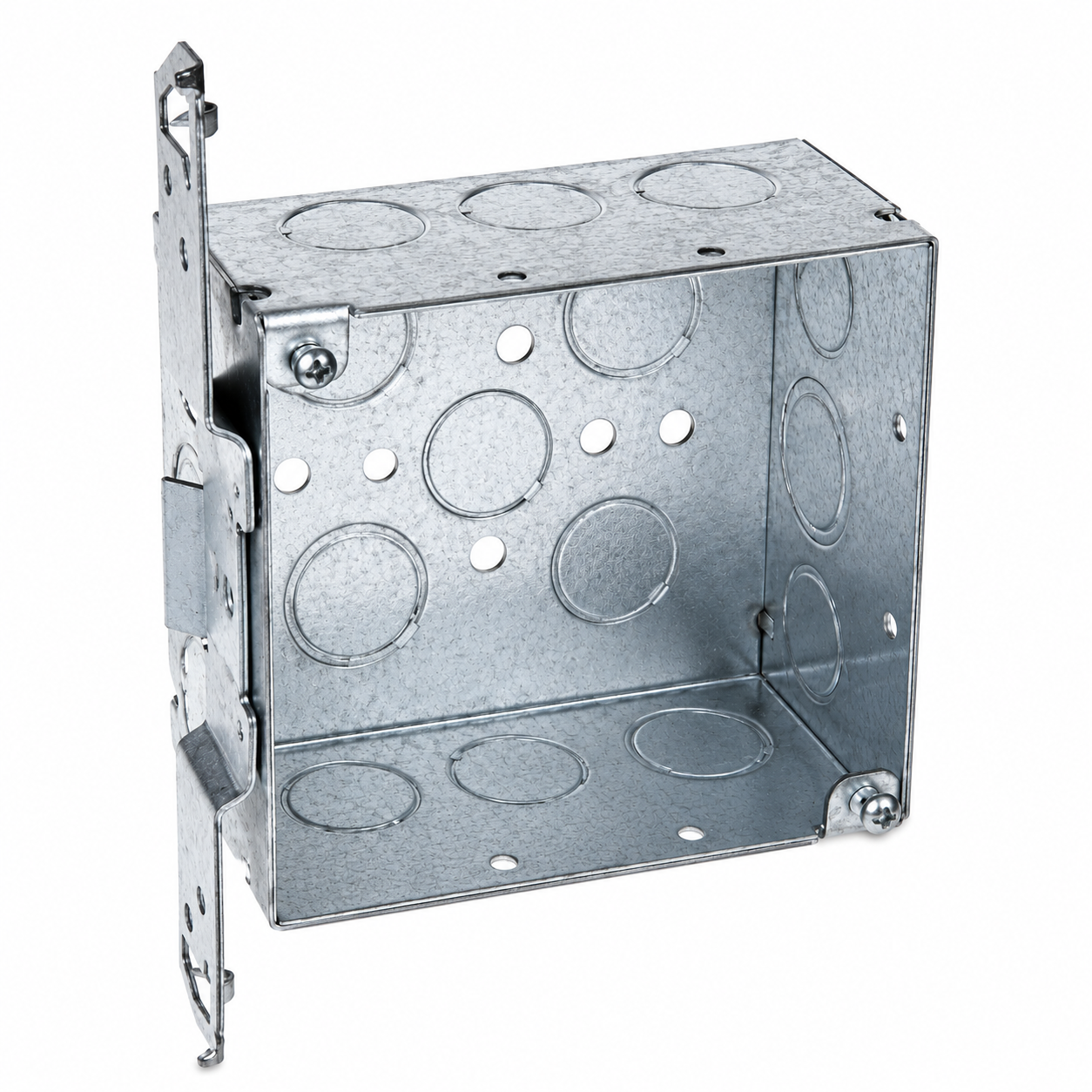

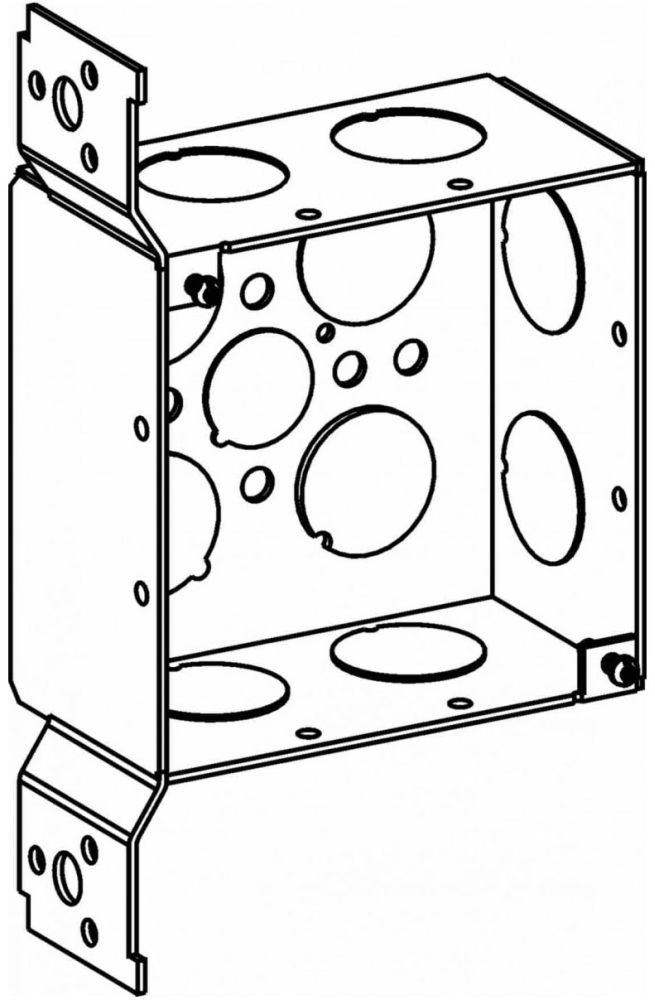

4" square deep steel box used to support wiring connections for lighting fixtures, switches, and receptacles in ceilings and walls. The box is 2-1/8" deep, welded from 16 gauge galvanized steel, and includes an FB flush bracket for offset mounting on the flat side of a stud or joist in commercial and hospitality electrical rough-in applications.
Features
4" square welded steel box with 30.3 cu. in. capacity
2-1/8" deep body for branch wiring and device connections
FB flush bracket for offset mounting on the flat side of a stud or joist
3/4" knockout configuration with (6) side knockouts and (1) 1/2", (4) 3/4" bottom knockouts
Listed for fixture/luminaire support of 50 lbs or less
Typically ships in 1-3 business days based on stock levels
Quick Ship
