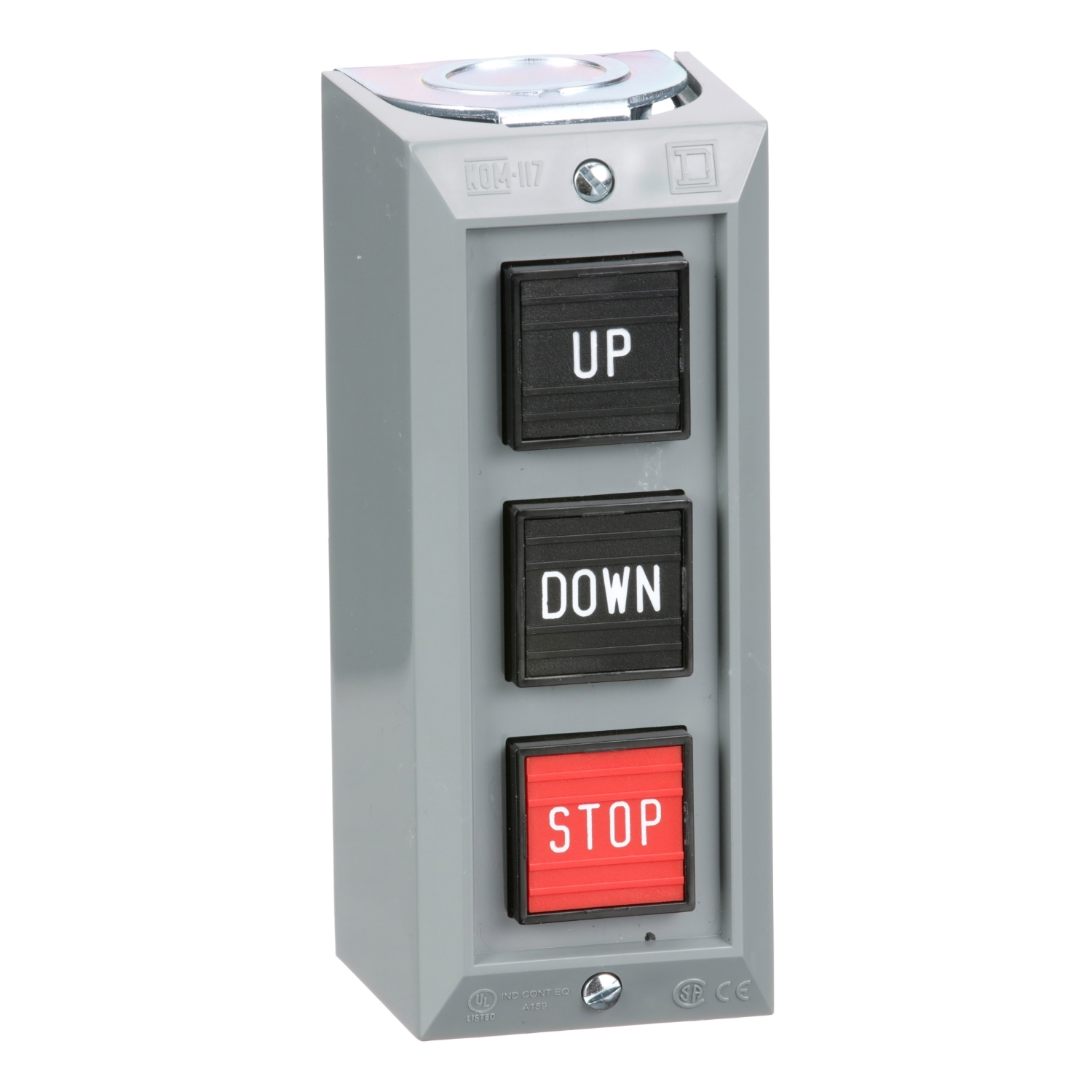

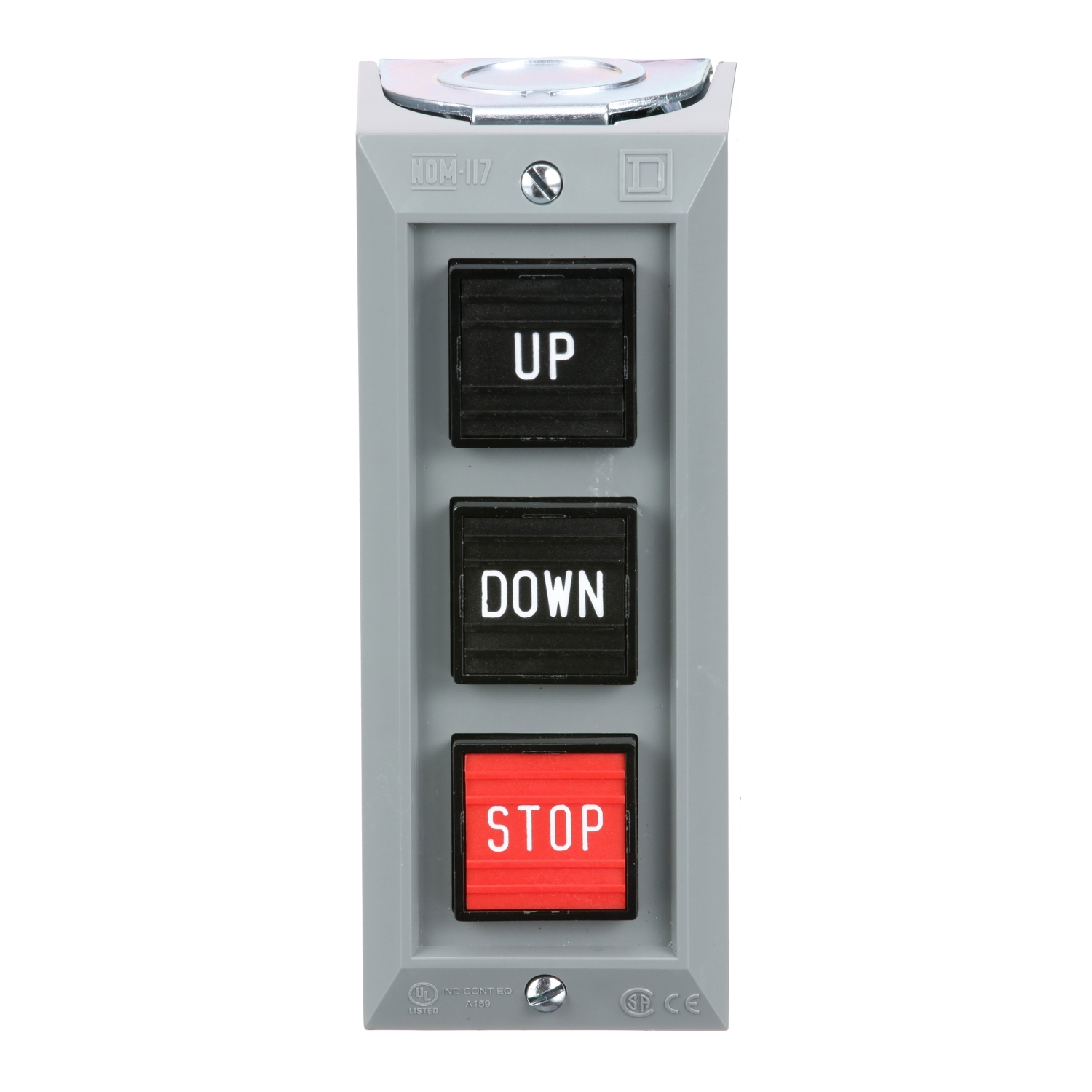

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has an UP-push button with a normally open and a normally closed contact. It has a DOWN-push button with a normally open and a normally closed contact. It also has a STOP-push button with a normally closed contact. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for an inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. This control station is UL Listed and CSA certified.
Contacts type and composition: 2 NO + 3 NC
Connections: Screw clamp terminal
Product Certifications: UL, CSA, CE
Typically ships in 1-3 business days based on stock levels
Quick Ship
