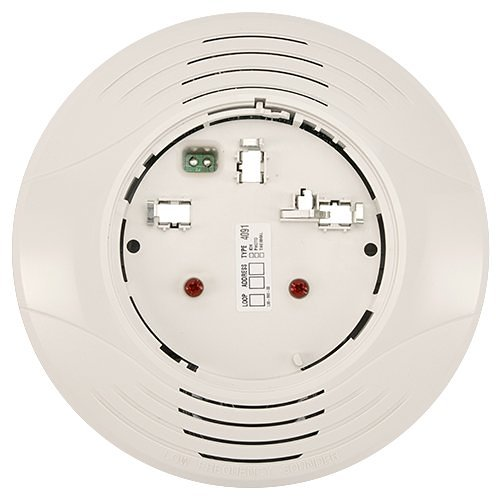

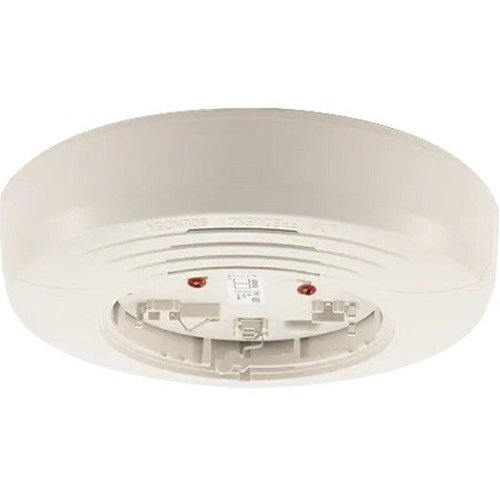

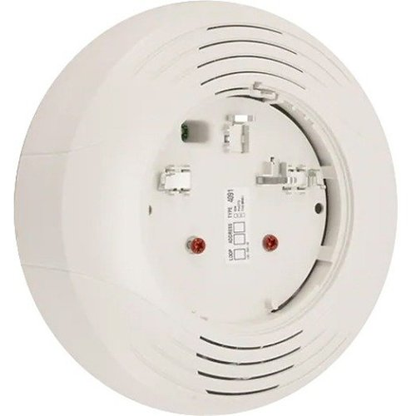

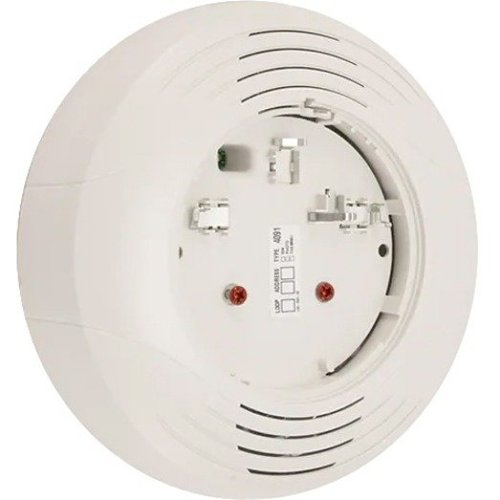

low-frequency intelligent sounder base is designed for use with compatible addressable detector heads in fire alarm systems. It produces a 520 Hz audible signal to support sleeping-area notification requirements and is suited for hospitality and commercial applications where low-frequency occupant notification is required. The base supports multiple tone patterns, two sound output levels, and separate external power for sounder operation.
Features
Produces a 520 Hz +/- 10% low-frequency square wave tone
Supports Continuous, ANSI Temporal 3, ANSI Temporal 4, and March Time tone patterns
Two sound output levels: greater than 75 dBA or 85 dBA minimum at 10 ft. at 24V in continuous tone
Mounting plate supports multiple common junction box sizes and includes remote annunciator connection
