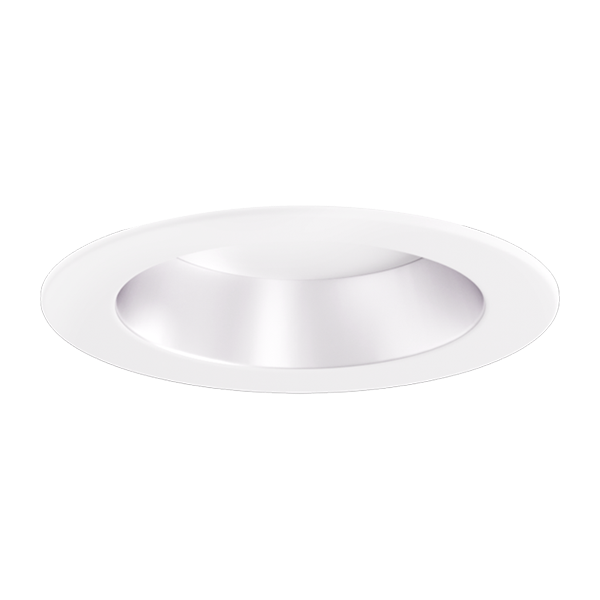

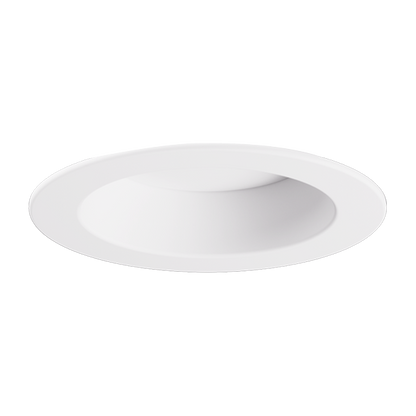

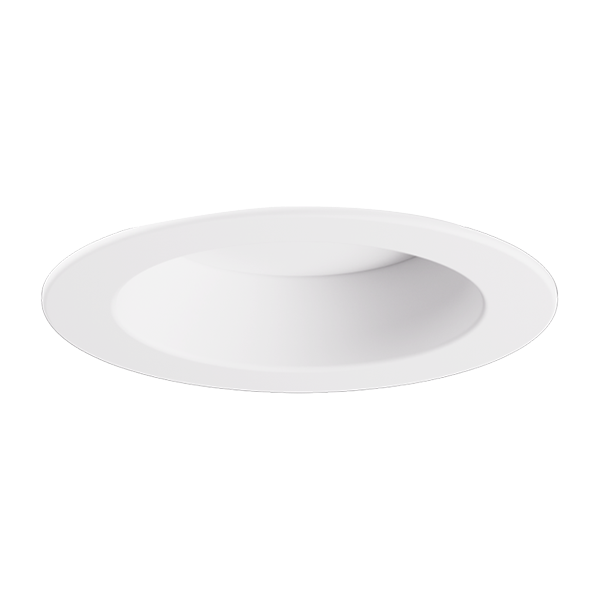

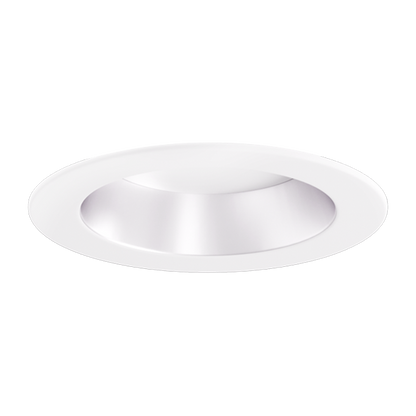

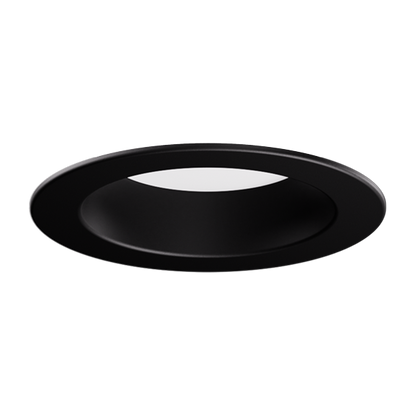

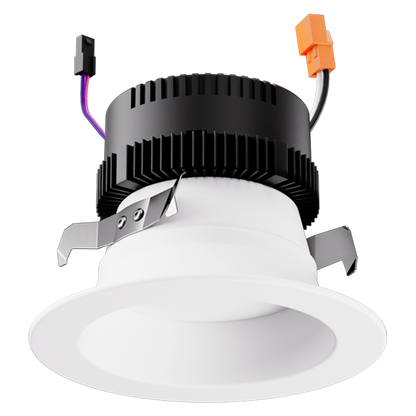

4" 0-10V LED Trim w/ CCT & Lumen Select

4" 0-10V LED Trim w/ CCT & Lumen Select

by Elco

SKU:EL475CT5DW

$66.09
$66.09
Sale Sold out

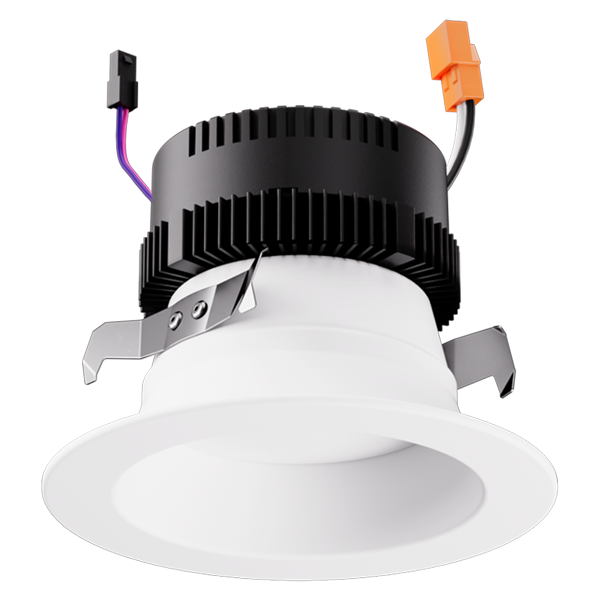

4" 0-10V LED Insert with selectable color temperature and lumen output, engineered with energy-efficient LED technology and a 120/277V 0-10V dimmable driver for commercial and hospitality downlighting applications. Manual switches on the module allow field adjustment during installation, giving project teams flexibility across new construction, remodel, and retrofit applications with compatible 4" recessed housings.

Features:

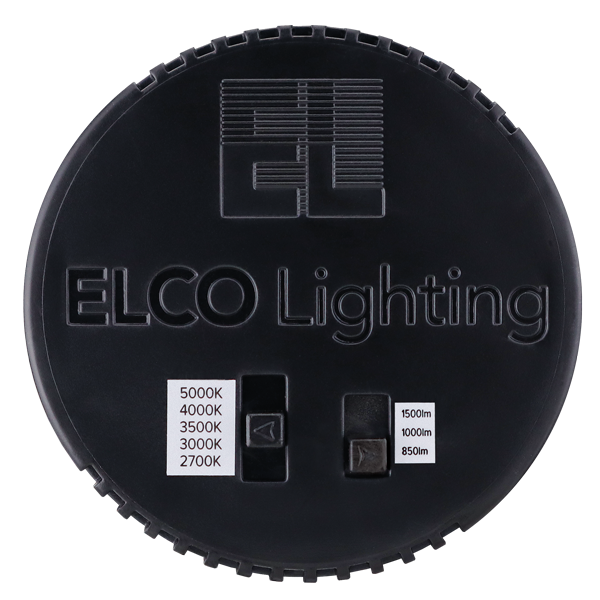

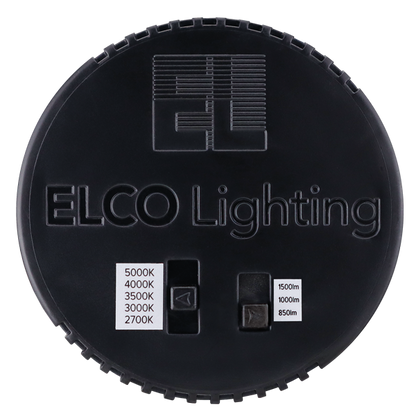

  • Manual switch to choose desired color temperature and lumen output
  • Soft white lens provides smooth lumen distribution and helps eliminate LED pixelation
  • Deep-set LED trim reduces glare while providing even illumination
  • Suitable for IC and non-IC applications
  • 50,000-hour L70 rated life
Color: White
Typically ships in 1-3 business days based on stock levels Quick Ship

In stock: 0
  • Resources
Mfr Spec Sheet
Installation Instructions
Warranty Information
View full details
  • Specifications
Mounting
4" Housing Can
Size
  • 5-1/2" x 4-1/8"
Weight
1.5 LBS

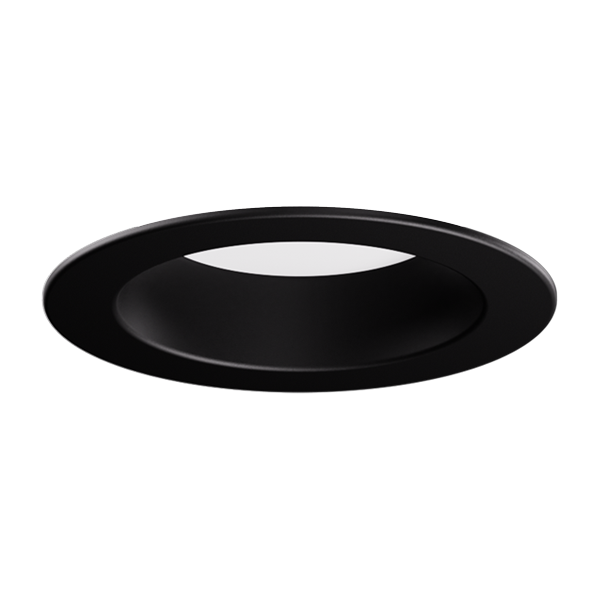

Finish
White/Black/Haze-White
Wattage
9.5W/13.5W/18W
Lumens
850L/1000L/1500L
Voltage
120/277V
Color Temp
27K/30K/35K/40K/50K
Dimmable
0-10V
CRI
90+
Listing
CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
Warranty
5-Year Limited Warranty
Location Rating
Wet Location Suitable For Indoor/Outdoor Use
