Graze X LED Wall Grazer

Graze X LED Wall Grazer

by Diode LED

SKU:DI-24V-GRZX-300-27K-94.998I-GR10-FLT-AB1-AE-46A01

$1,038.21
$1,038.21
Sale Sold out

Linear grazer fixture with precise beam control. Graze with nearzero glare in a small form factor.

FEATURES

  • Crisp optical performance with 10, 30, and 60 degree beam angles
  • X-TIR™ Linear Optics Technology for low glare
  • Built to length in 1" increments, daisy-chain capable for long runs

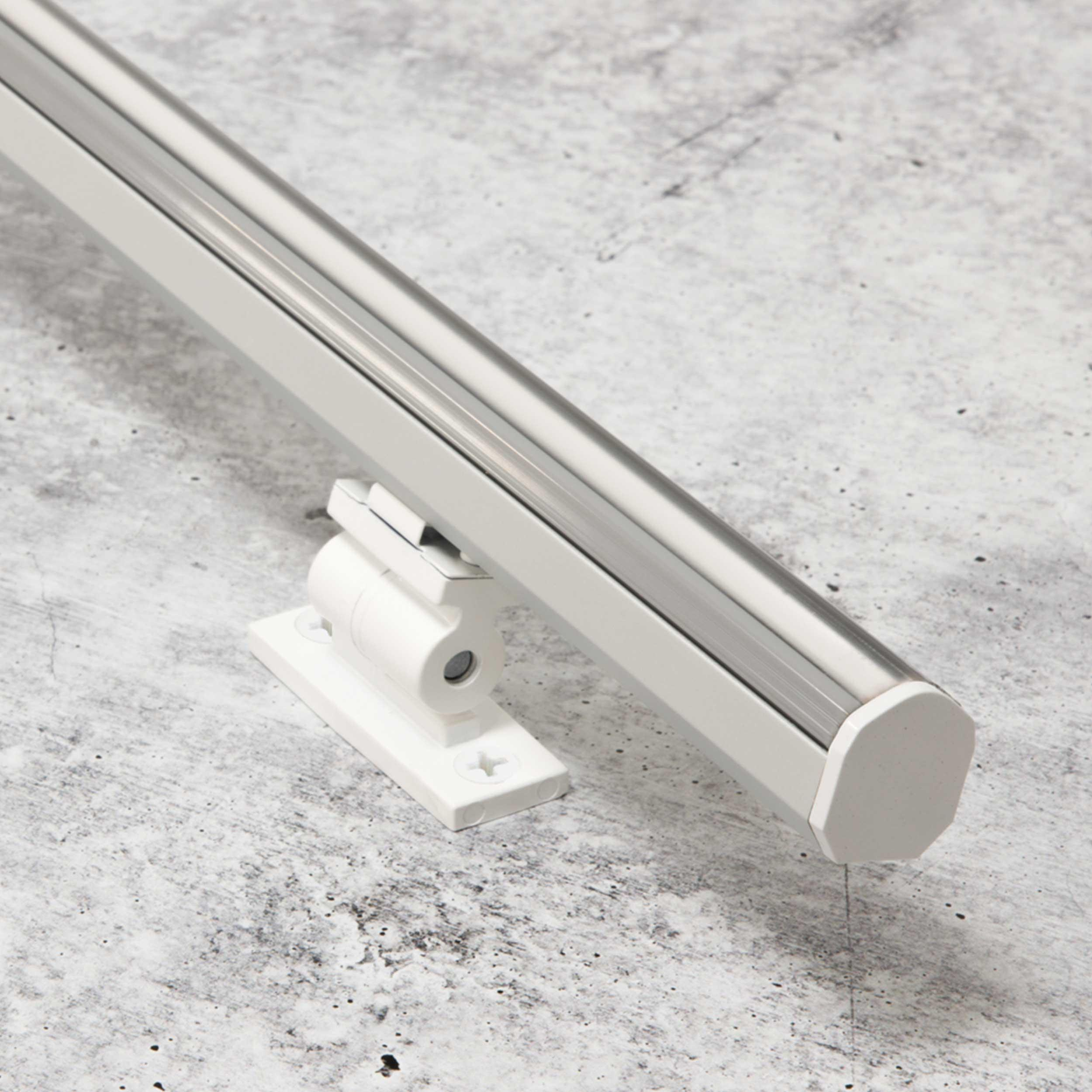

  • Rotating aiming bracket or flat mounting clip
Beam Angle
Lumens
CCT
Typically ships in 1-3 business days based on stock levels Quick Ship

In stock: 0
  • Resources
Mfr Spec Sheet
Warranty Information
View full details
  • Specifications
Mounting
Mounting Bracket
Size
  • 0.83"(W)0.95"(H)96"(L)
Finish
Aluminum
Wattage
300L: 2.8W/FT | 500L: 4.6W/FT | 800L: 7.2W/FT
Lumens
300L/FT | 500L/FT | 800L/FT
Voltage
24V
Color Temp
27K | 30K | 35K
Dimmable
Driver Specific
CRI
95+
Listing
UL
Warranty
5-Year Limited Warranty
Location Rating
Damp Location suitable For Indoor/Outdoor Use
Data Sheet
Manufacturer Data Sheet
