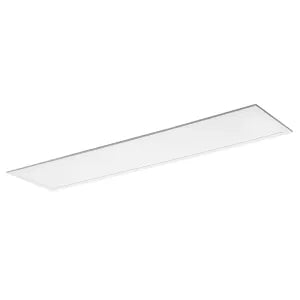

1'x4' LED Flat Panel, CCT Selectable
1'x4' LED Flat Panel, CCT Selectable
SKU:FXPNL40/1X4/8CCT3
In stock: 0
Send a copy to email:
By entering your email, you agree that it will be seen by the store owner and may contact you.
Open here
- Description
- Specifications
- Resources
These DLC-qualified back-lit flat panels feature integrated LED technology in a low-profile design. They offer selectable color temperatures (3500K, 4000K, 5000K) and include a 12V output to support controls and accessories. Designed for smooth, uniform light distribution with consistent color, they’re an ideal choice for interior lighting in offices, schools, and meeting rooms.
These panels are compatible with T-Bar/Grid ceilings and can be surface-mounted with an optional kit. Lightweight and energy-efficient, they are easy to install and provide reliable performance.
FEATURES
- DLC Standard
- Damp Location
- ETL Listed
- Selectable Color Temp 3CCT (3500K, 4000K, 5000K)
- Voltage: 120-277V
- Power Factor: >0.9
- Surge Protection: 2.5KV
- Beam Angle: 115˚
- Dimmable: 0-10V
- CRI: >80
- Operating temperature: - 4˚F - 104˚F
- Lighter weight housing for easy installation
- Uniform and consistent color from edge to edge
- 5 Year Warranty
- NSF Compliant
- Optional for Purchase: Ceiling Mount Box, Flange Mount Kit, Emergency Driver
| Mounting |
T-Bar/Grid
|
| Size |
|
| Finish |
White
|
| Wattage |
40W
|
| Lumens |
4480L
|
| Voltage |
120V-277V
|
| Color Temp |
(35/40/50K)
|
| Dimmable |
0-10V
|
| CRI |
80
|
| Listing |
NSF
|
| Warranty |
5-Year Limited Warranty
|
| Location Rating |
Damp Location suitable For Indoor/Outdoor Use
|
