Vive Ceiling Occ Sensor

Vive Ceiling Occ Sensor

Vive® by Lutron

SKU:LRF2-OCR2B-P-WH

Lutron Radio Powr Savr occupancy / vacancy sensors are wireless, battery-powered, passive infrared (PIR) sensors that automatically control lights via RF communication to compatible dimming and switching devices. These sensors detect the heat (IR radiation of 9.5 μm) from
people moving within an area to determine when the space is occupied. The sensors then wirelessly transmit the appropriate commands to the associated dimming and switching devices to turn the lights on or off automatically. They combine both convenience and
exceptional energy savings potential along with ease of installation.

FEATURES

  • 3 settings available: (Auto-On/Auto-Off) (Auto-On Low-Light/Auto-Off) (Manual-On/Auto-Off)
  • 360˚ coverage ranges from 324 ft² (30.2 m²) to 676 ft2 (62.4 m²), depending on mounting height
  • Operating current: 14 μA nominal
  • Requires one CR 123 lithium battery
  • Timeout Options: 1min / 5min / 15min(default) / 30min
  • Temperature: 32 ˚F to 104 ˚F (0 ˚C to 40 ˚C)
Typically ships in 1-3 business days based on stock levels Quick Ship

In stock: 0

View full details
  • Specifications
Mounting
Ceiling Mount
Size

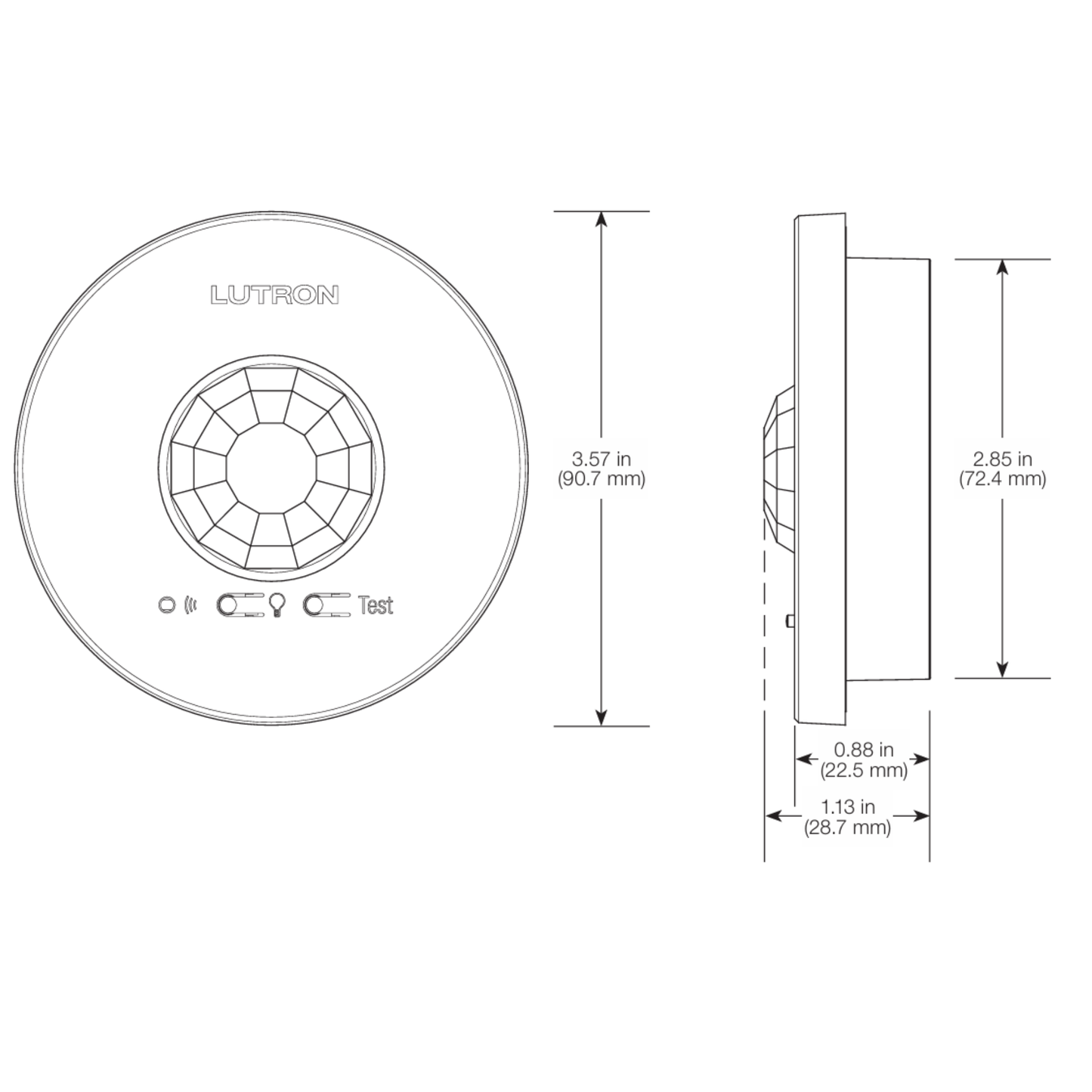

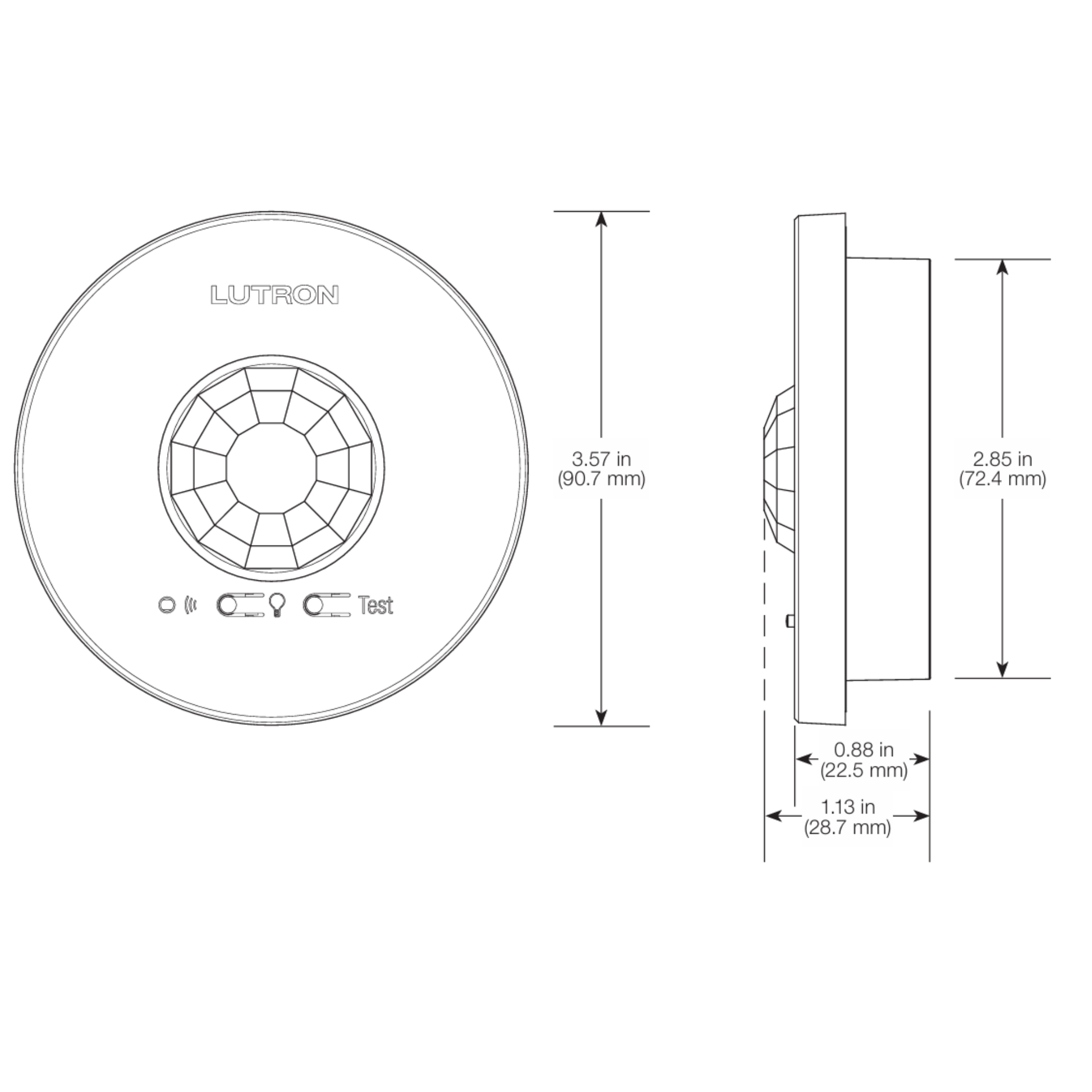

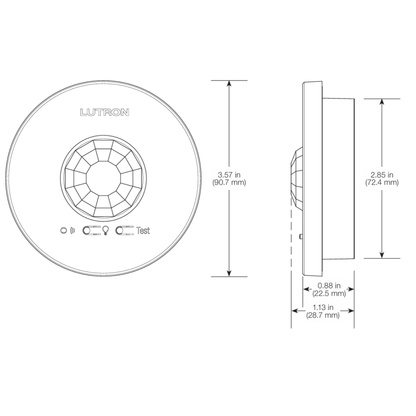

  • 3.57"(Dia)1.13"(H)
Finish
White
Voltage
3V
Listing
cULus
Warranty
5-Year Limited Warranty
Location Rating
Dry Location suitable for Indoor Use Only
