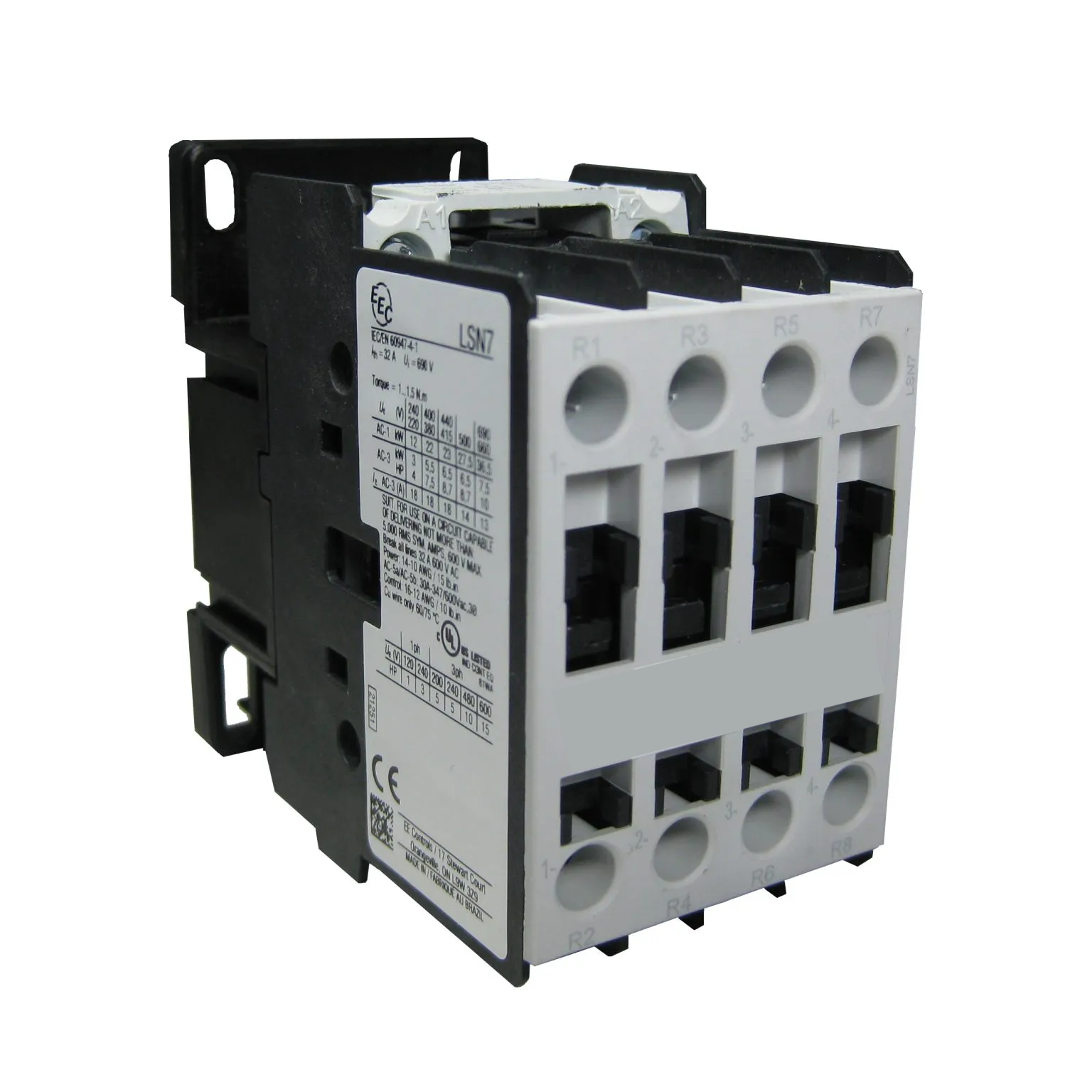

4-Pole Lighting Contactor

4-Pole Lighting Contactor

by EE Controls

SKU:LSN7-400-A

Lighting contactor used to switch line-voltage lighting circuits in commercial lighting control panels, scheduled lighting systems, and energy-management applications. The requested part number LSN7-400-A matches the 30A, 4-pole, normally open LSN7 configuration with a 120V coil for ballast and LED lighting loads up to 600VAC.

Features

  • 4-pole, normally open configuration for multi-circuit lighting control.
  • 30A ballast/LED rating at up to 600VAC maximum.
  • Screw or 35 mm DIN rail / surface-DIN rail mounting.
Typically ships in 1-3 business days based on stock levels Quick Ship

Low stock: 3 left

  • Resources
Mfr Spec Sheet
Warranty Information
View full details
  • Specifications
Mounting
Surface Mount
Size

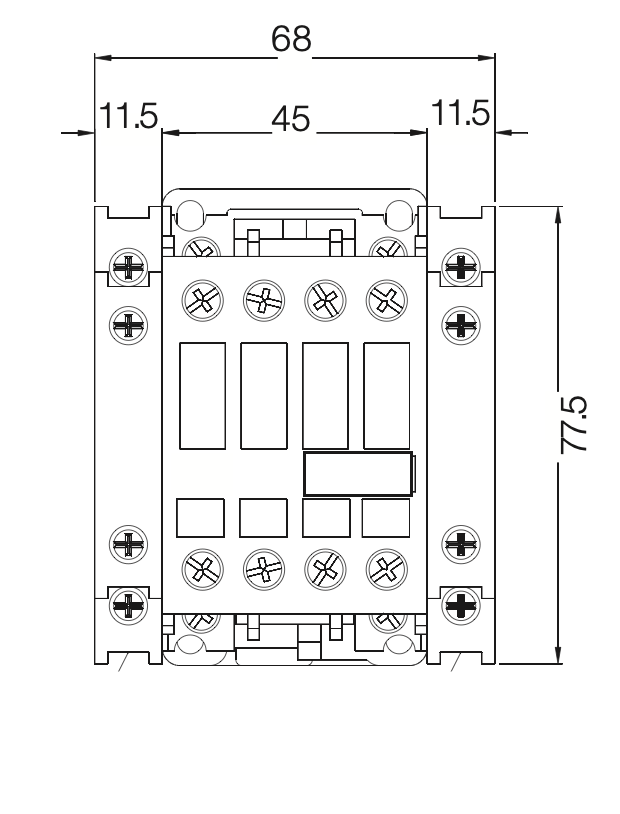

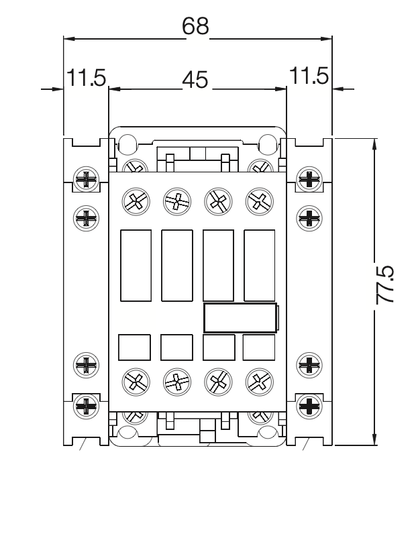

  • 3.2" (L) x 1.8" (W) x 3.35" (D)
Weight
1.0 LBS
Voltage
120V
Listing
UL/CUL
Warranty
1-Year Limited Warranty
Location Rating
Dry Location suitable for Indoor Use Only
Data Sheet
Manufacturer Data Sheet
