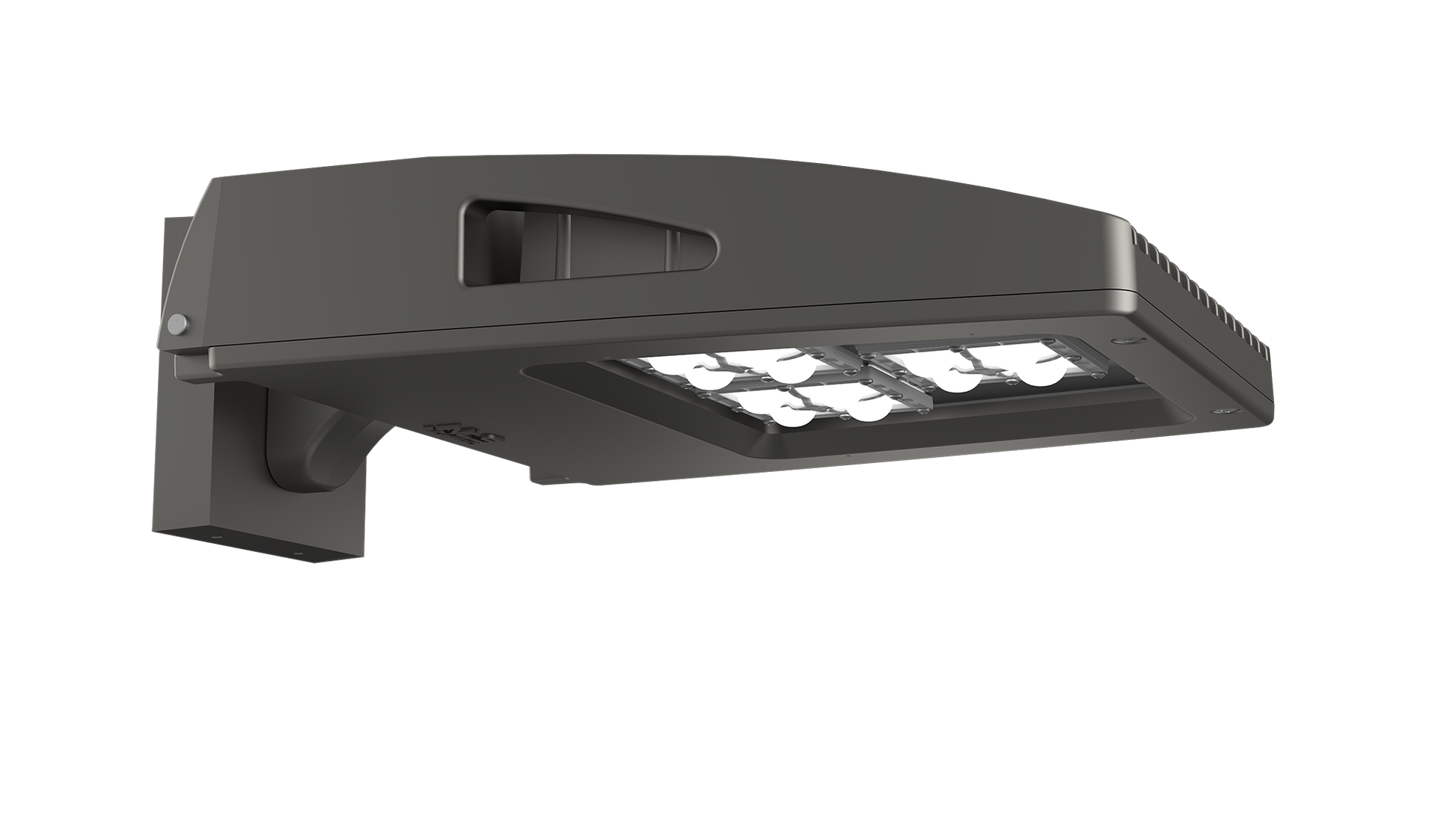

Nova Area Light Head

by JSA

SKU:Nova-1

$828.02
$828.02
Sale Sold out
1 1

Nova Area Light Head

Nova Area Light Head

by JSA

SKU:Nova-1

$828.02
$828.02
Sale Sold out
  • Ideal High Lumen Output for Area, Site, Roadway, and Large Parking Venues such as: Corporate Parks, Shopping Malls, Event & Sports Stadiums, Roadways, and Airports
  • Sleek Robust Design of the NV-1 (Weight: 24 lbs., EPA: 0.75)
  • IES Distributions T5
  • Includes Architectural Arm Mount
  • Finish: Bronze
  • 32L LED Configuration, 106 Watts
  • 4000K CCT Multi Chip High Power 80 CRI LEDs
  • IP65 Rated Against Dust & Water Ingress, IK10 Rated for Tamper/Vandalism/Impact Protection
  • 3G Vibration Rated per ANSI C136.31-2010
  • Surge Protection: 20KVA supplied as standard
  • LED Drivers Ambient Temp. Min is -40°C and Ambient Temp. Max ranges from 50°C to 55°C.
  • Two-piece silicone Micro Optic system ensures IP67 level seal around each PCB
  • Easy to Install Mounting
  • Cost Competitive and Short Shipping Lead Times in Days & Weeks
Typically ships same business day if in stock Quick Ship

In stock: 0

  • Resources
Mfr Spec Sheet
Photometric File
Installation Instructions
Warranty Information
View full details
  • Specifications
Mounting
Direct Pole | Wall | Knuckle | Trunnion |Tennis Arm |Mast Arm Mount
Size
  • 16.5"(L) x 14.75"(W) x 3.375"(H)
Weight
24LB
Finish
Bronze
Wattage
106W
Lumens
12166L
Voltage
120-277V
Color Temp
40K
Dimmable
0-10V
CRI
80
Listing
cULus Listed
Warranty
5-Year Limited Warranty
Location Rating
Wet Location Suitable For Indoor/Outdoor Use
