NV-2 - 80L-T4FTW - Area Light w/ House Shield, Bronze (Marine Grade Finish)

NV-2 - 80L-T4FTW - Area Light w/ House Shield, Bronze (Marine Grade Finish)

by NLS Lighting

SKU:NV-2-T4FTW-80L-1-40K7-UNV-ASA-BRZ-MGF-HSS

  • Ideal High Lumen Output for Area, Site, Roadway, and Large Parking Venues such as: Corporate Parks, Shopping Malls, Event & Sports Stadiums, Roadways, and Airports
  • Sleek Robust Design of the NV-2 (EPA: 0.61)
  • IES Distributions T4FTW
  • IP65 Rated Against Dust & Water Ingress, IK10 Rated for Tamper/Vandalism/Impact Protection
  • 20kA Surge Protection (120V - 480V), 0 - 10V Programmable, Dimming LED Drivers
  • LED Drivers Ambient Temp. Min (°C) is -40°C and Ambient Temp. Max (°C) ranges from 50°C to 55°C
  • Silicone Micro Optics providing 96% Clarity and Heat Resistant up to 150°C
  • 9 Standard Finishes, Marine Grade Finish and Custom Finish Available
  • Controls Agnostic, Compatible with Most Control Systems and Sensors
  • Environmentally Friendly Product Which Reduces Energy Consumption, L70 > 100,000 hours
  • Easy to Install Mounting
  • Cost Competitive and Short Shipping Lead Times in Days & Weeks
Typically ships in 1-3 business days based on stock levels Quick Ship

In stock: 0

  • Resources
Mfr Spec Sheet
Photometric File
Installation Instructions
Warranty Information
View full details
  • Specifications
Mounting
Arm Mount
Size

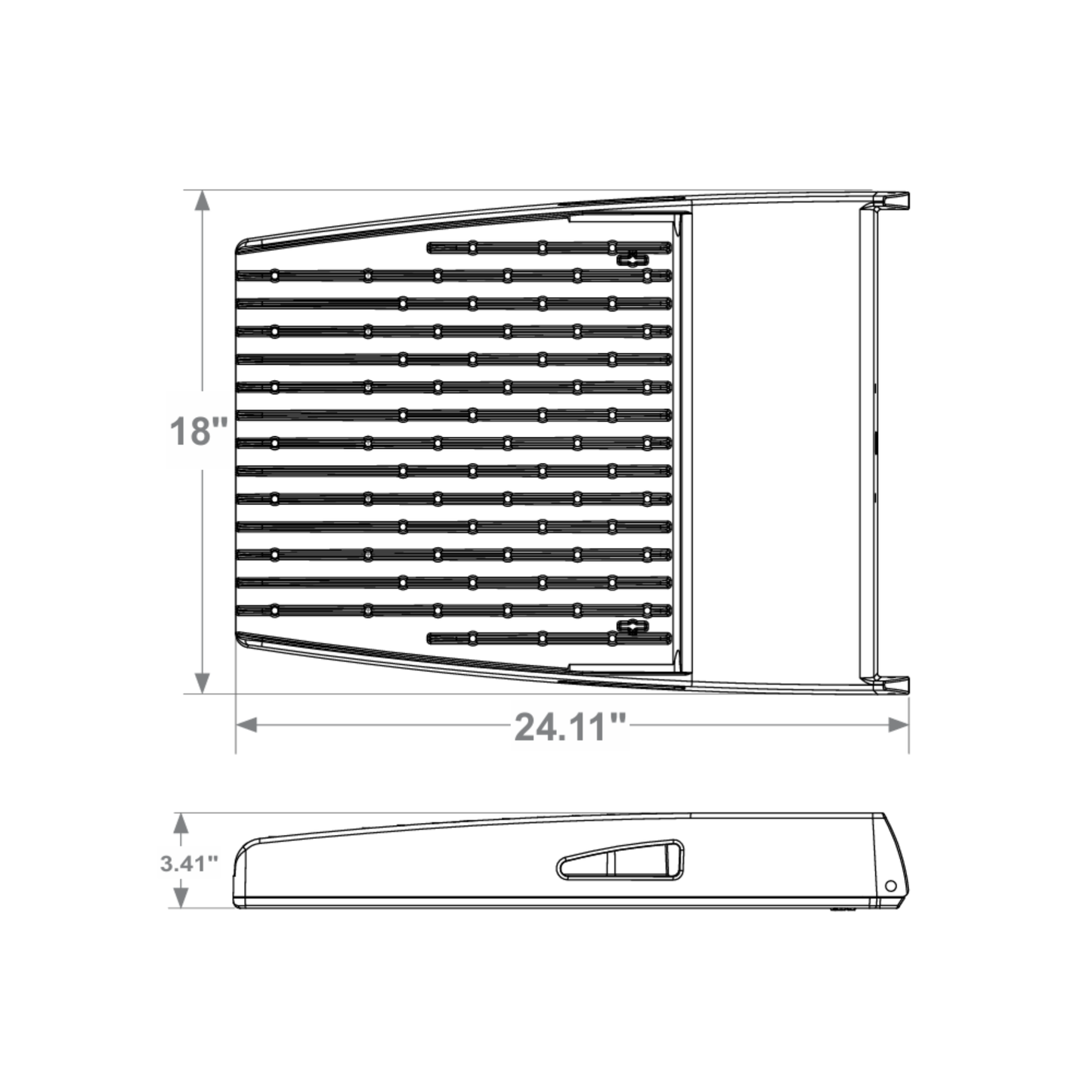

  • 24.11"(L) x 18"(W) x 3.41"(H)
Weight
42 lb
Finish
Bronze (Marine Grade Finish)
Wattage
256W
Lumens
27799L
Voltage
120-277V
Color Temp
4000K
Dimmable
0-10V
CRI
70
Listing
cULus Listed
Warranty
5-Year Limited Warranty
Location Rating
Wet Location Suitable For Indoor/Outdoor Use
Data Sheet
Manufacturer Data Sheet
Installation Instructions
IES files
