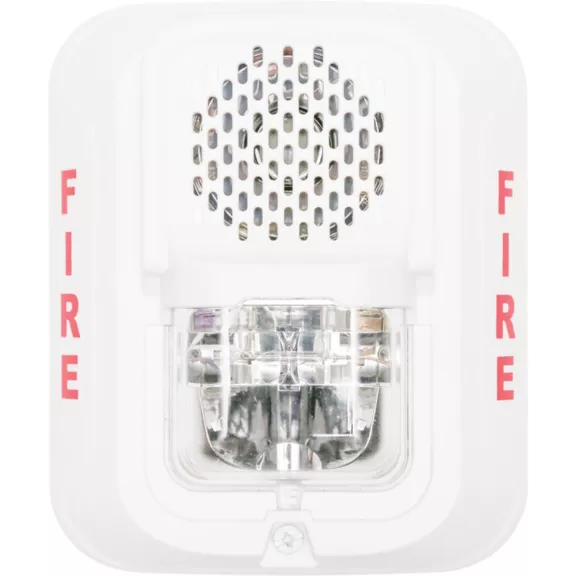

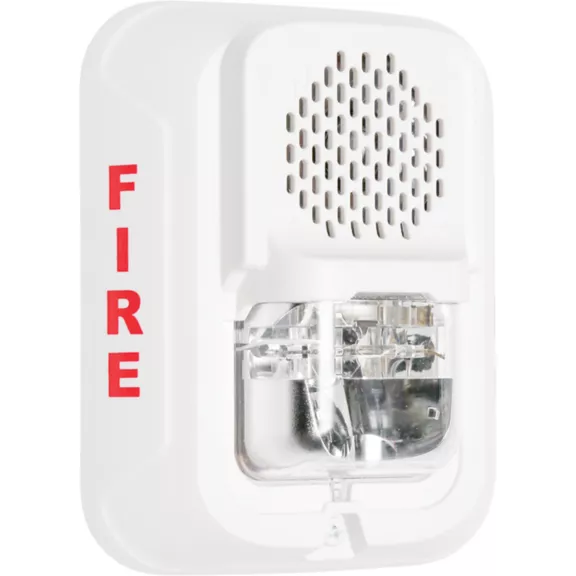

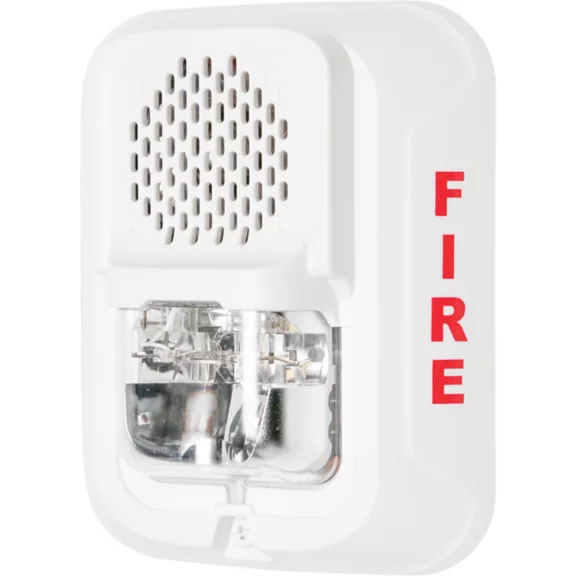

P2WL-LF (Low Frequency Sounders/Strobe)

The low frequency sounder and low frequency sounder strobes were designed to address
the NFPA 72 sleeping space requirements that require a low frequency notification
appliance that operates within frequency range of 520 Hz ± 10% and is of a square wave
tone. Like the entire L-Series product line they include a variety of features that increase
their application versatility while simplifying installation. All devices feature plug-in designs
with minimal intrusion into the back box, making installations fast and foolproof while
virtually eliminating costly and time-consuming ground faults.

• 520 Hz ± 10% square wave tone, NFPA compliance

• Full candela range plus High/Low tone options to optimize current draw for a wide variety of applications

• Compact, standard, and round ceiling options

• Field-selectable candela settings. Wall units: 15, 30, 75, 95, 110, 135, and 185. Ceiling units: 15, 30, 75, 95, 115, 150, and 177.

• Rotary switch for High/Low, Temp3, Temp4, and Continuous settings. Sounder-only models also offer a Coded setting.

• Plug-in design with minimal intrusion into the back box

• Mounting plate shorting spring checks wiring continuity before device installation

• Sounders listed for ceiling and wall

• Round Sounder Strobes listed for ceiling and wall

• Updated modern aesthetics
