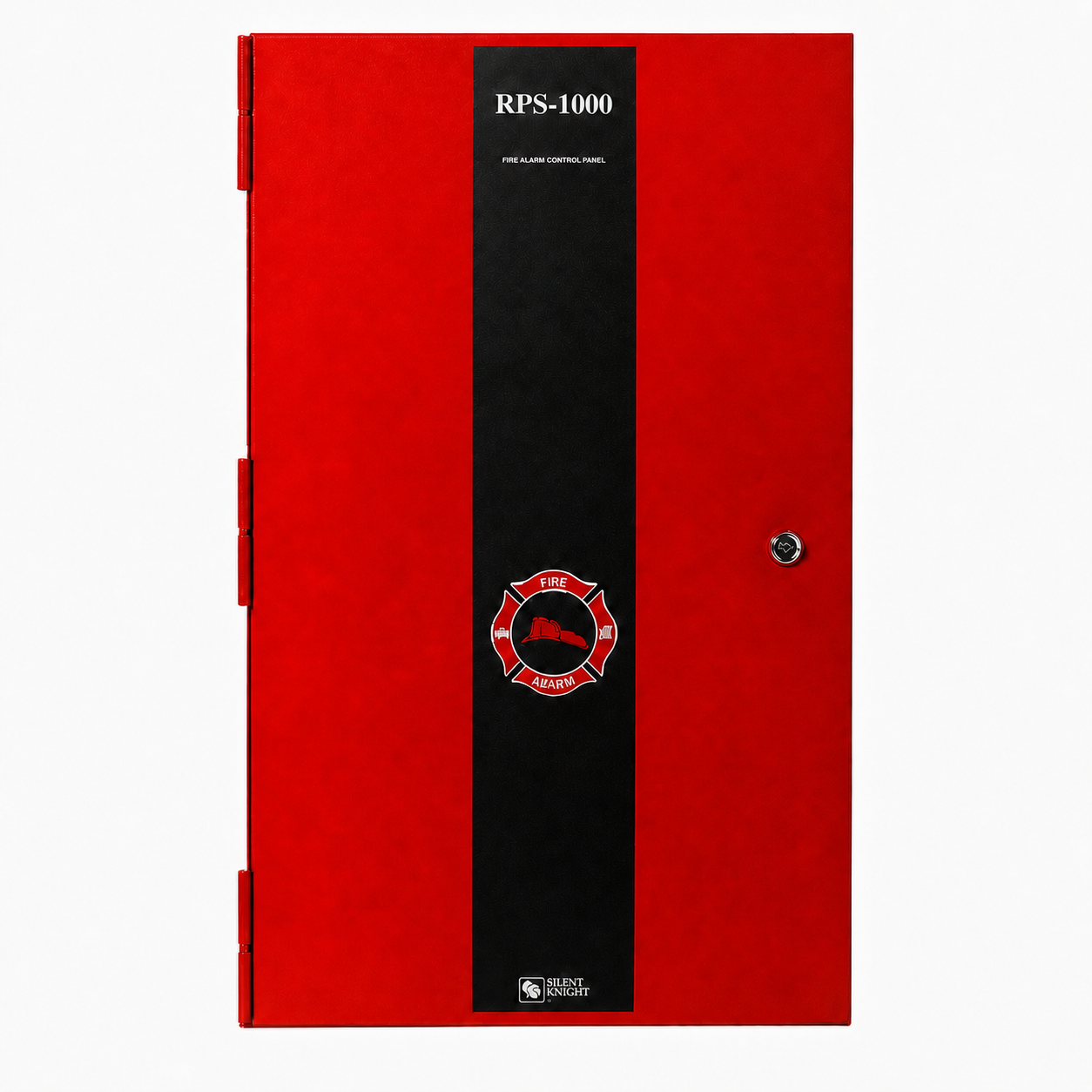

Intelligent Distributed Power Module

Intelligent Distributed Power Module

by Honeywell

SKU:RPS-1000

Used to add 24V fire alarm system power, programmable Flexput I/O capacity, and relay outputs to compatible Honeywell Farenhyt addressable fire alarm systems. It is suited for commercial and hospitality fire alarm installations that need additional NAC power, auxiliary power, conventional initiating circuits, or added system expansion over SBUS.

Features

  • Includes six onboard Flexput I/O circuits configurable for NAC, auxiliary, door holder, and conventional initiating device applications
  • Includes two Form C programmable relays rated 2.5A at 24VDC
  • Connects over RS-485 SBUS with up to 6,000 ft. wiring distance from the module
Typically ships in 1-3 business days based on stock levels Quick Ship

Low stock: 3 left

  • Resources
Mfr Spec Sheet
Warranty Information
View full details
  • Specifications
Mounting
Flush Mount
Size
  • 26.04" (H) x 16.01" (W) x 4.01" (D)
Weight
26.0 LBS
Finish
Red
Voltage
120V
Listing
UL Listed, FDNY Approved, FM Approved
Warranty
3-Year Limited Warrany
Location Rating
Dry Location suitable for Indoor Use Only
Data Sheet
Manufacturer Data Sheet
