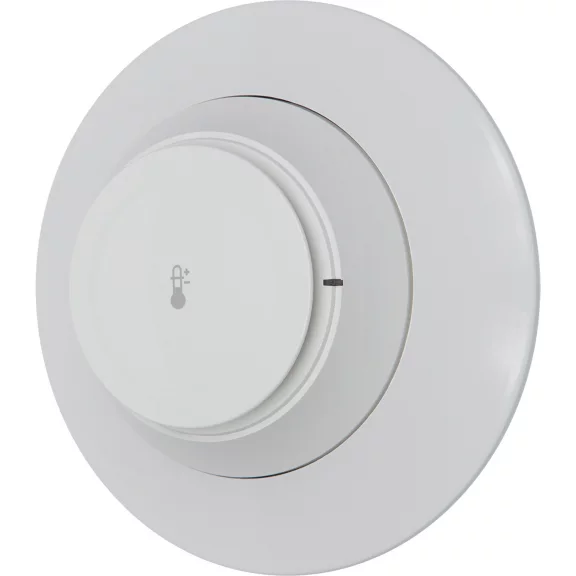

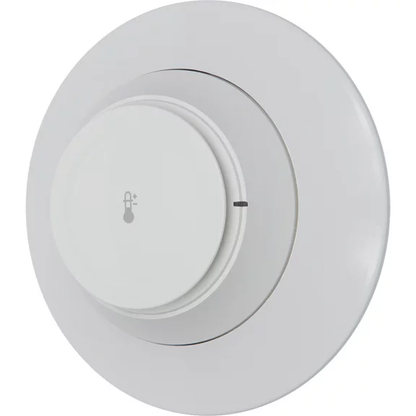

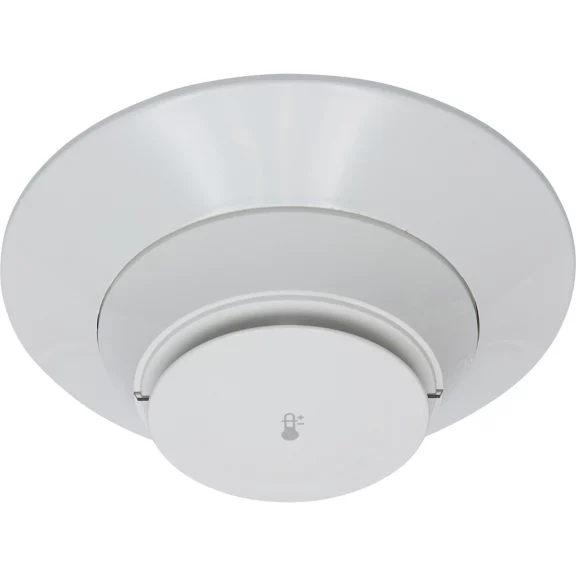

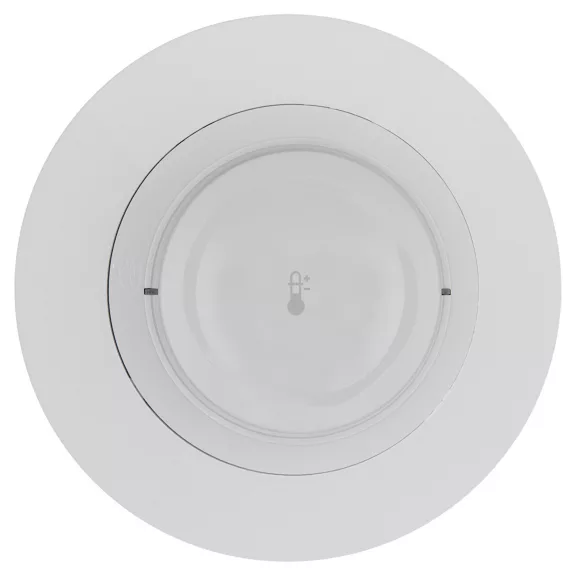

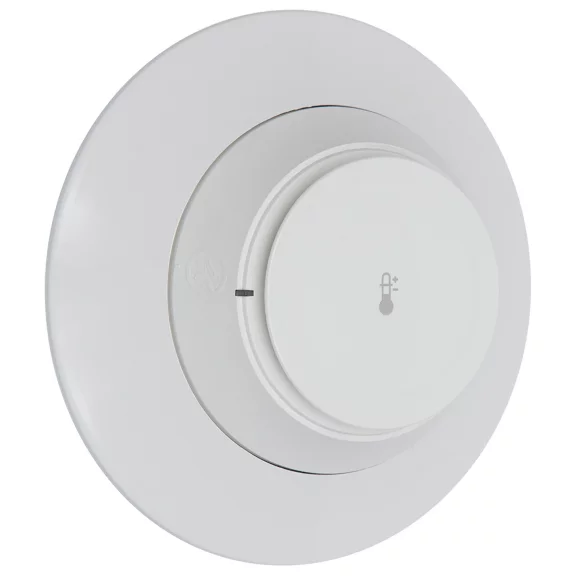

SK-HEAT-ROR-W (Rate of Rise Heat Detector)

Addressable heat and rate-of-rise detectors are plug-in thermal detectors with integral communication features that surpass conventional detectors.

• Sleek and stylish contemporary design

• Advanced thermal technology for fast response

• Rate-of-rise model (SK-HEAT-W-ROR), 15°F (8.3°C) per minute

• Sealed against back pressure

• Addressable by device

• Two-wire SLC connection

• Visible LEDs “blink” every time the unit is addressed

• Built-in tamper resistant feature

• Built-in functional test switch activated by external magnet

• 360°-field viewing angle of the visual alarm indicators (two bi-color LEDs). LEDs blink green in Normal condition and turn on steady red in Alarm.

• Integral communications and built-in device-type identification

• Remote test feature from the panel

• Walk test with address display (an address of 121 will blink the detector LED 12-(pause)-1)

• Low standby current

• Designed for direct surface or electrical box mounting

• Plugs into separate base for ease of installation and maintenance

• SEMS screws for wiring of the separate base
