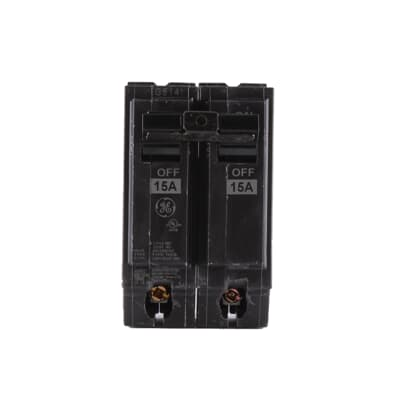

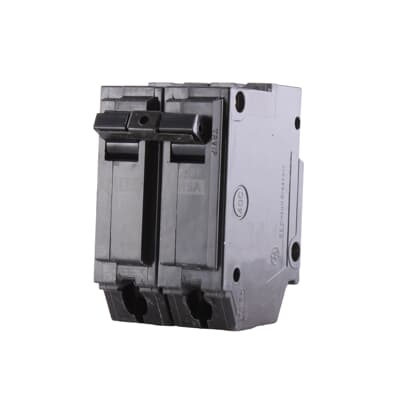

High Interrupting Circuit Breaker: 2-Pole, 15A

High Interrupting Circuit Breaker: 2-Pole, 15A

by ABB

SKU:THHQL2115

2-pole plug-in thermal-magnetic circuit breaker used for branch circuit protection in load centers and lighting panels. It is rated 15A at 120/240V and is suited for commercial and light commercial electrical distribution applications where a 22 kAIC interrupting rating is required.

Features

  • 22 kAIC interrupting capacity, 15A, 120/240V rating
  • 2-pole plug-in circuit breaker with internal common trip
  • Thermal-magnetic operation with quick-make / quick-break mechanism
  • Wire range: 14-8 AWG copper / 12-8 AWG aluminum
  • Suitable for reverse feed
Typically ships in 1-3 business days based on stock levels Quick Ship

105 in stock

  • Resources
Mfr Spec Sheet
Warranty Information
View full details
  • Specifications
Mounting
Plug-in
Size
  • 3.2" (L) x 2.0" (W) x 2.3" (D)
Weight
0.61 LBS
Finish
Black
Voltage
120/240V
Listing
UL Listed, HACR Listed
Warranty
2-Year Limited Warranty
Location Rating
Dry Location suitable for Indoor Use Only
Data Sheet
Manufacturer Data Sheet
