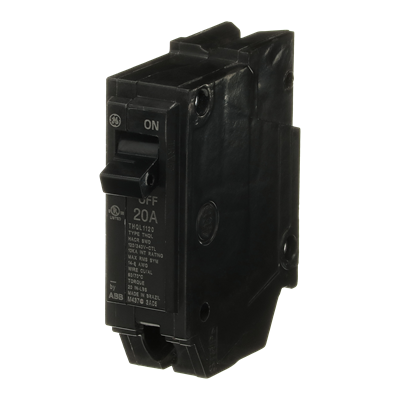

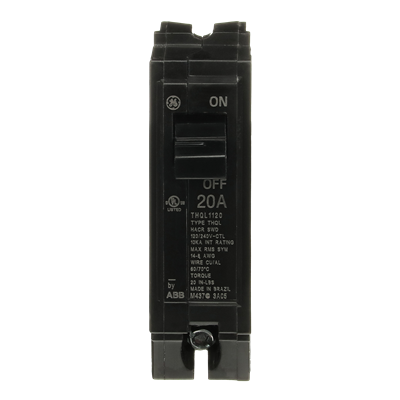

Circuit Breaker: 1-Pole, 20A

Circuit Breaker: 1-Pole, 20A

by ABB

SKU:THQL1120

Single-pole plug-in thermal-magnetic circuit breaker used for branch circuit protection in compatible Q-Line load centers and lighting panel applications. It is rated 20A at 120/240V with a 10 kAIC interrupting capacity, making it a practical replacement or service stock item for commercial and hospitality electrical distribution work.

Features

  • 1-pole plug-in circuit breaker
  • 20A rating
  • 120/240V system voltage
  • 10 kAIC interrupting rating
  • Fixed long-time and instantaneous trip function
  • Suitable for reverse feed
  • SWD and HACR marked
  • Accepts 14-8 AWG copper or 12-8 AWG aluminum conductors
Typically ships in 1-3 business days based on stock levels Quick Ship

380 in stock

  • Resources
Mfr Spec Sheet
Warranty Information
View full details
  • Specifications
Mounting
Plug-in
Size
  • 3.0" (L) x 3.3" (W) x 1.0" (D)
Weight
0.31 LBS
Finish
Black
Voltage
120/240V
Listing
UL Listed
Warranty
2-Year Limited Warranty
Location Rating
Dry Location suitable for Indoor Use Only
Data Sheet
Manufacturer Data Sheet
