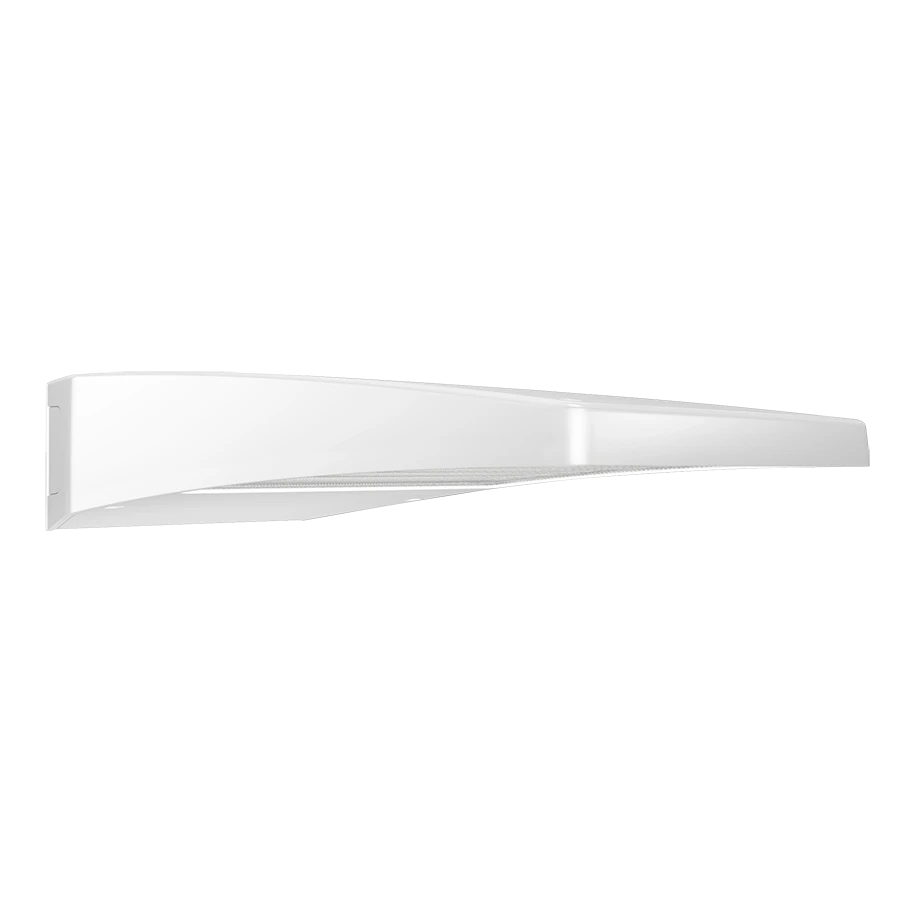

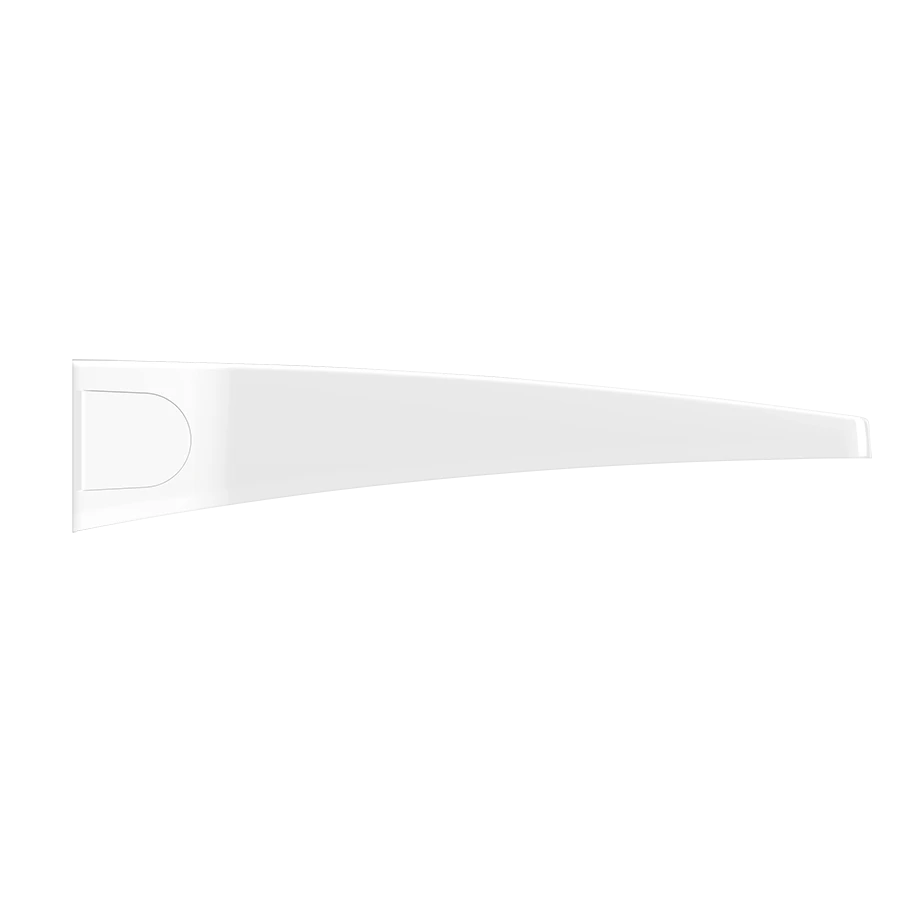

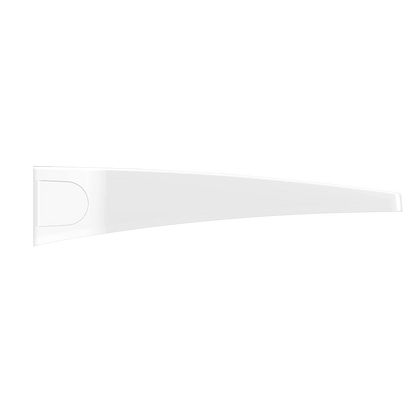

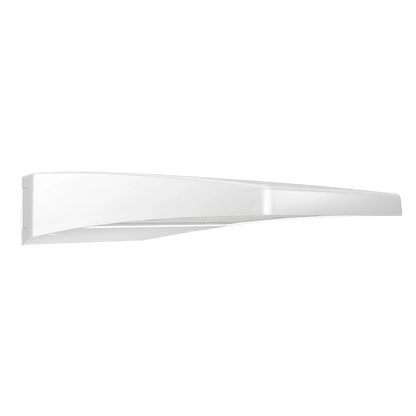

LED Wall Pack, White

LED Wall Pack, White

by RAB Lighting

SKU:WPLEDMW

Regular price $438.41
Regular price Sale price $438.41
Sale Sold out

FEATURES

  • Driver:                                                                                                                    32W: Constant Current, Class 2, 120-277V, 50/60
    Hz,120V: 0.26A, 208V: 0.16A, 240V: 0.14A, 277V:
    0.12A
    24W: Constant Current, Class 2, 120-277V, 50/60
    Hz,120V: 0.19A, 208V: 0.12A, 240V: 0.10A, 277V:
    0.09A
    16W: Constant Current, Class 2, 120-277V, 50/60
    Hz,120V: 0.13A, 208V: 0.08A, 240V: 0.07A, 277V:
    0.06A
  • THD: 6.58% at 120V, 11.18% at 277V
  • Power Factor: 99.5% at 120V, 92.3% at 277V
  • BUG Rating:                                                                                                            32W: B1 U0 G1
    24W: B1 U0 G1
    16W: B1 U0 G1
Typically ships in 1-3 business days based on stock levels Quick Ship

In stock: 0

View full details
  • Specifications
Mounting
Wall Mount
Size

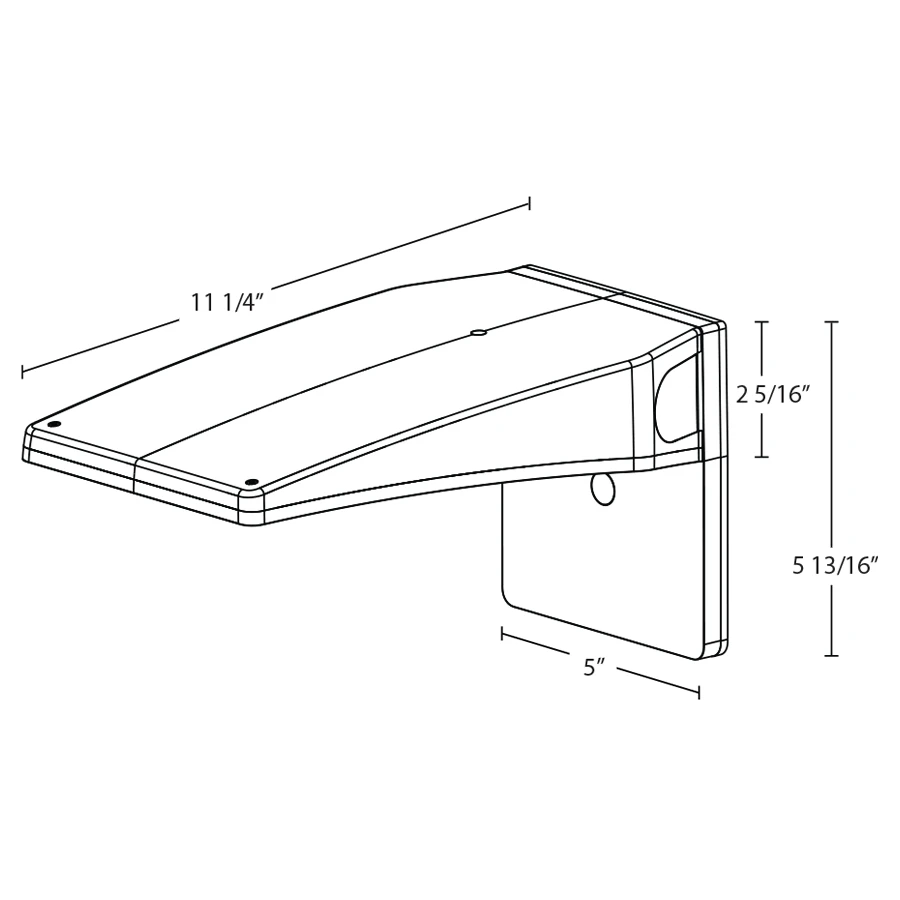

  • 11.25"(L)2.3125"(H)5"(W)
Weight
6.7 lb
Finish
White
Wattage
(16W/24W/32W)
Lumens
16W: 2020L | 24W: 2962L | 32W: 3862L
Voltage
120-277V
Color Temp
(30K/40K/50K)
Dimmable
0-10V
CRI
82-84
Listing
UL
Warranty
5-Year Limited Warranty
Location Rating
Wet Location Suitable For Indoor/Outdoor Use
